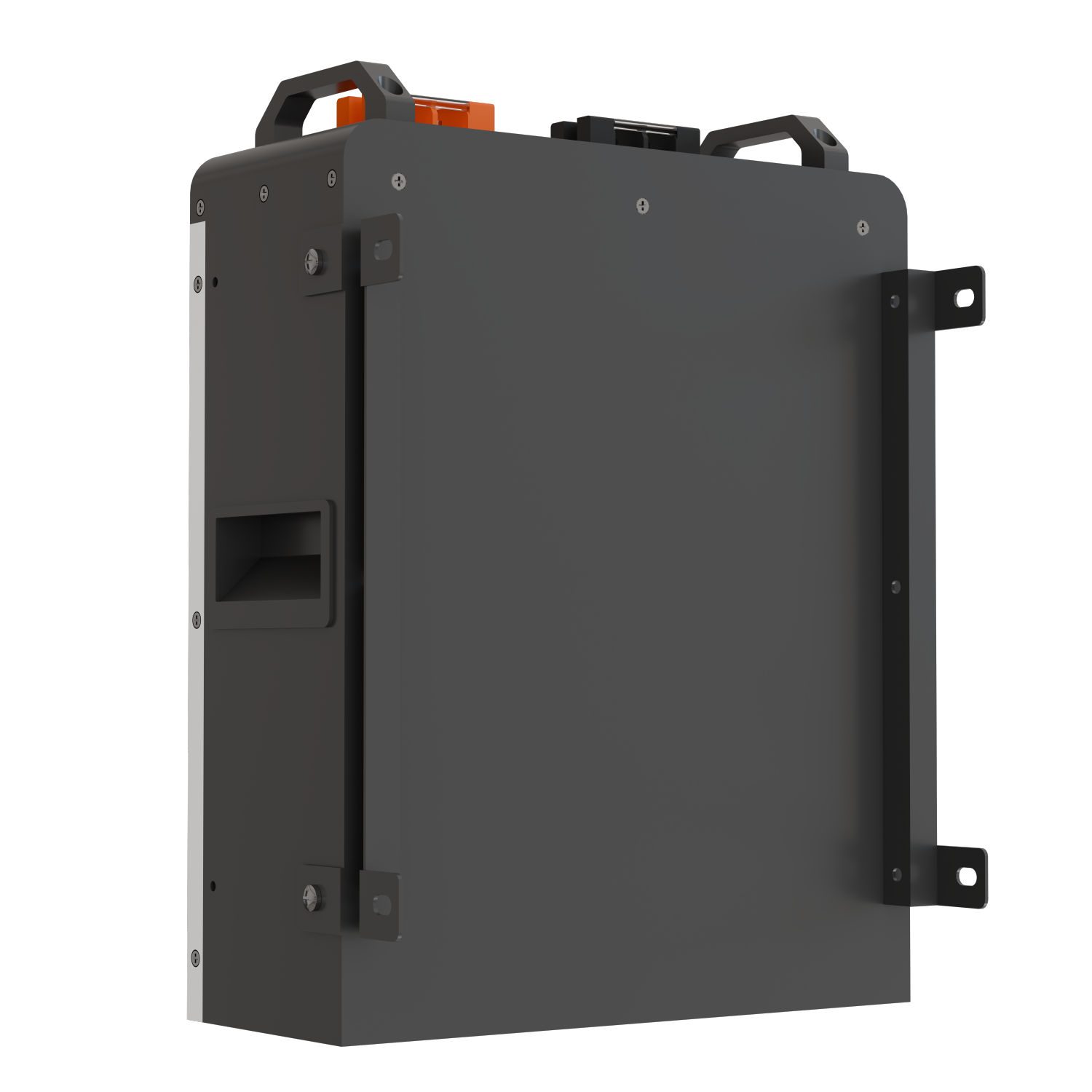

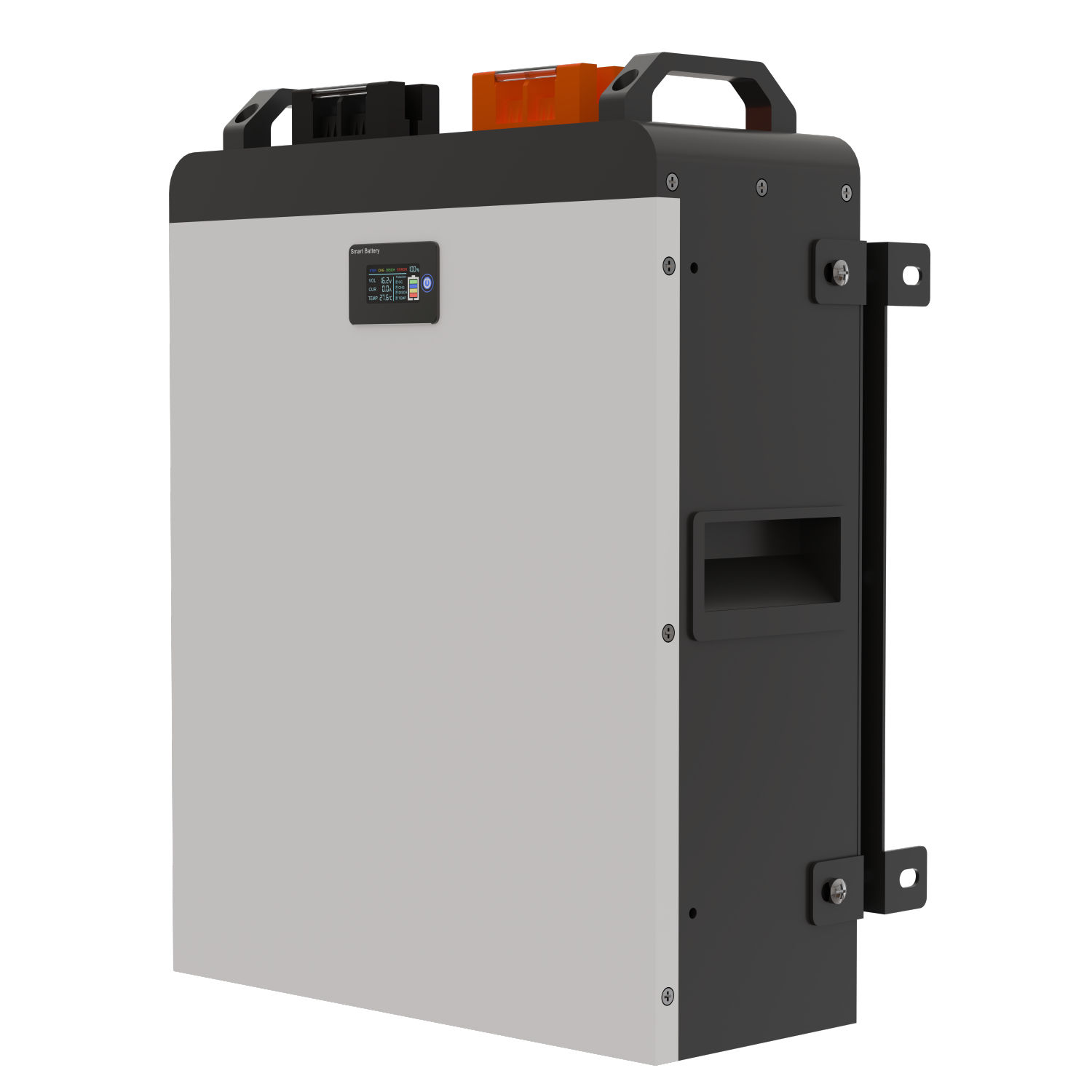

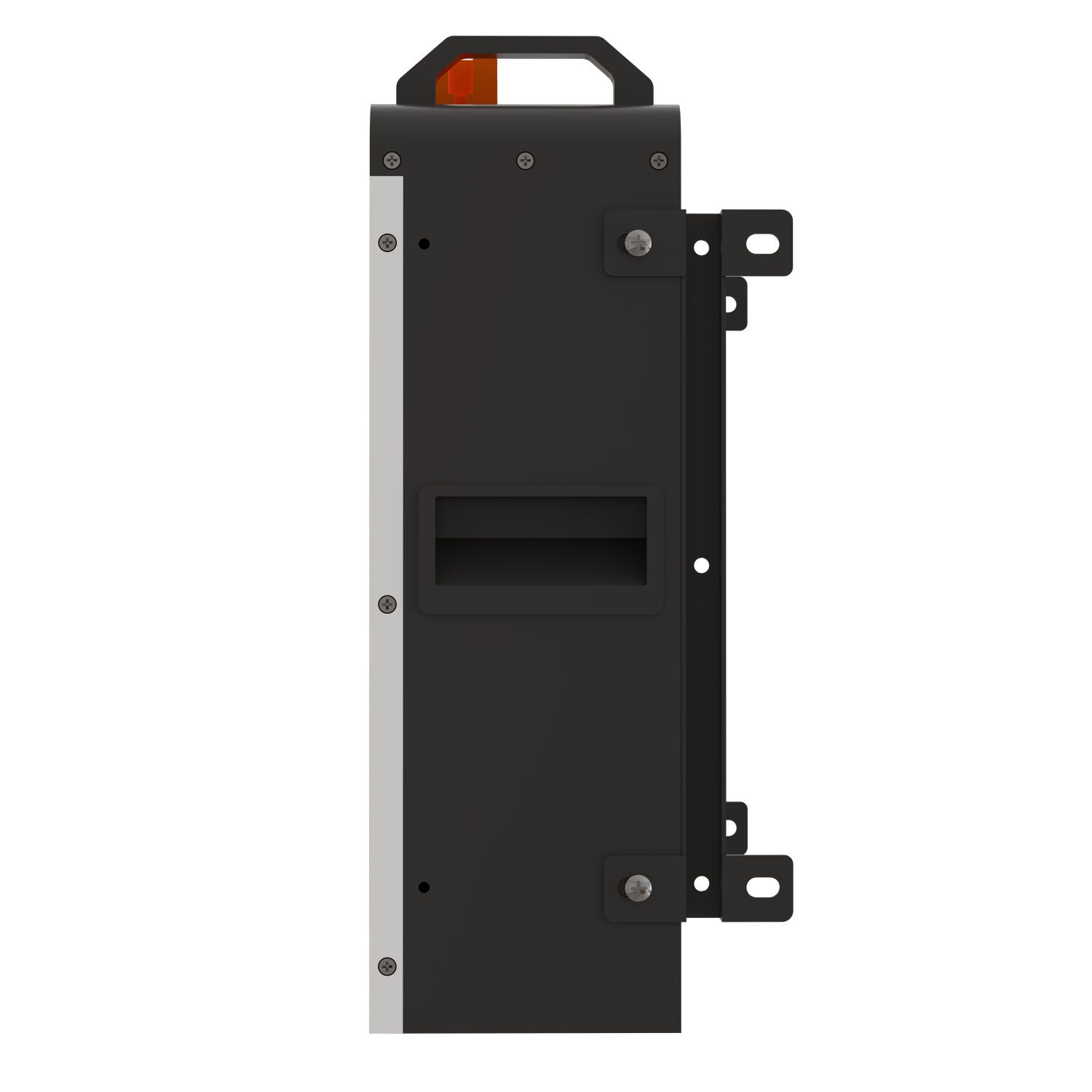

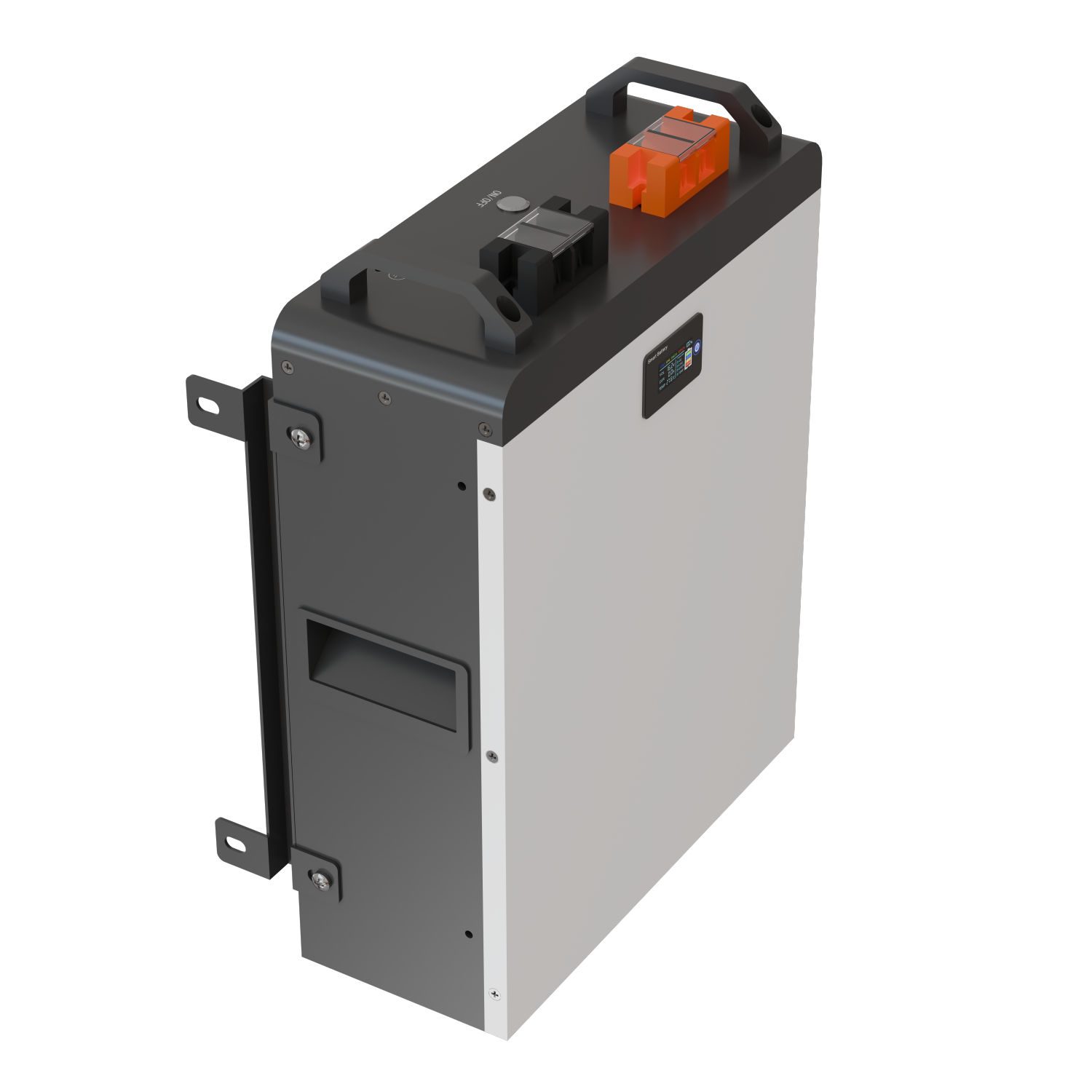

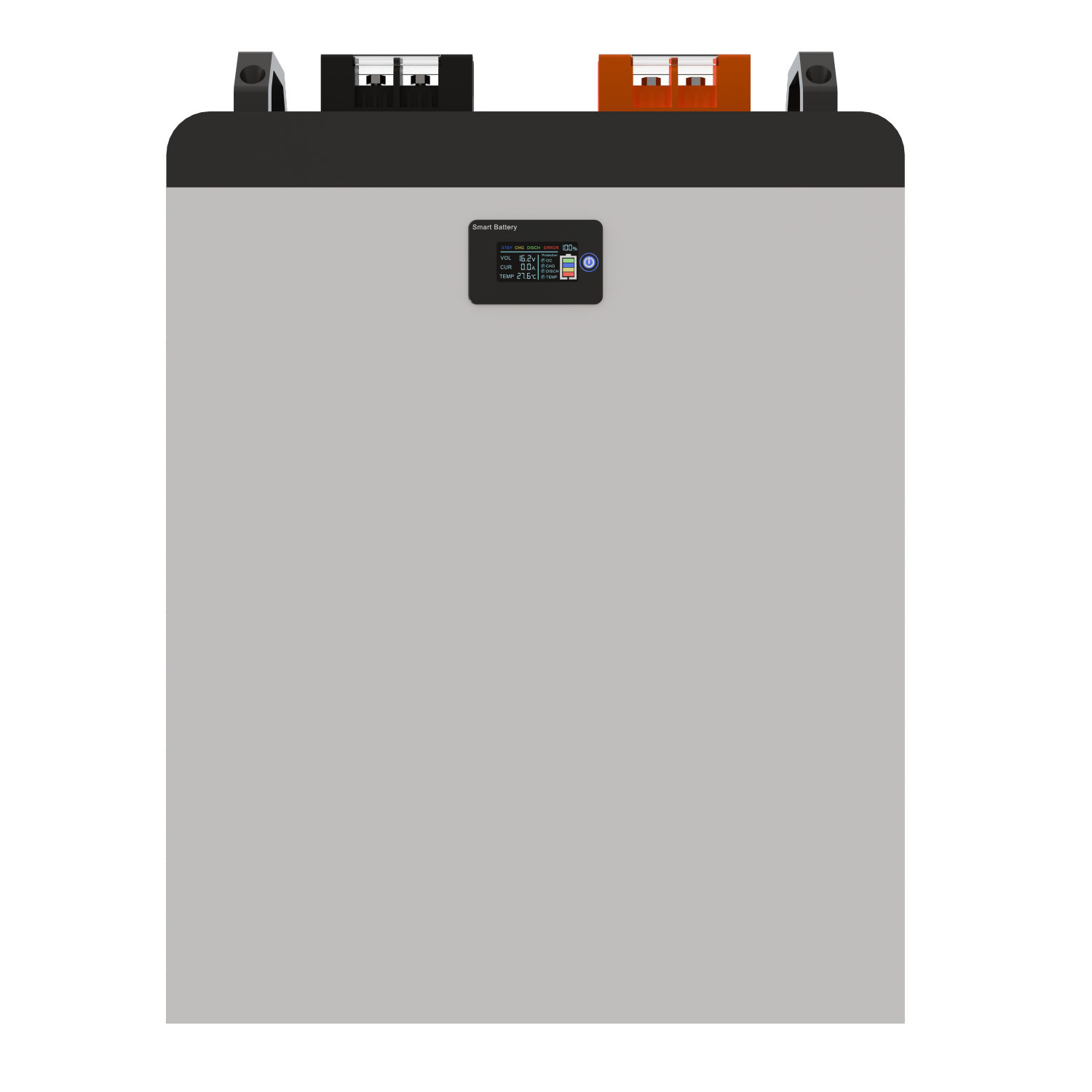

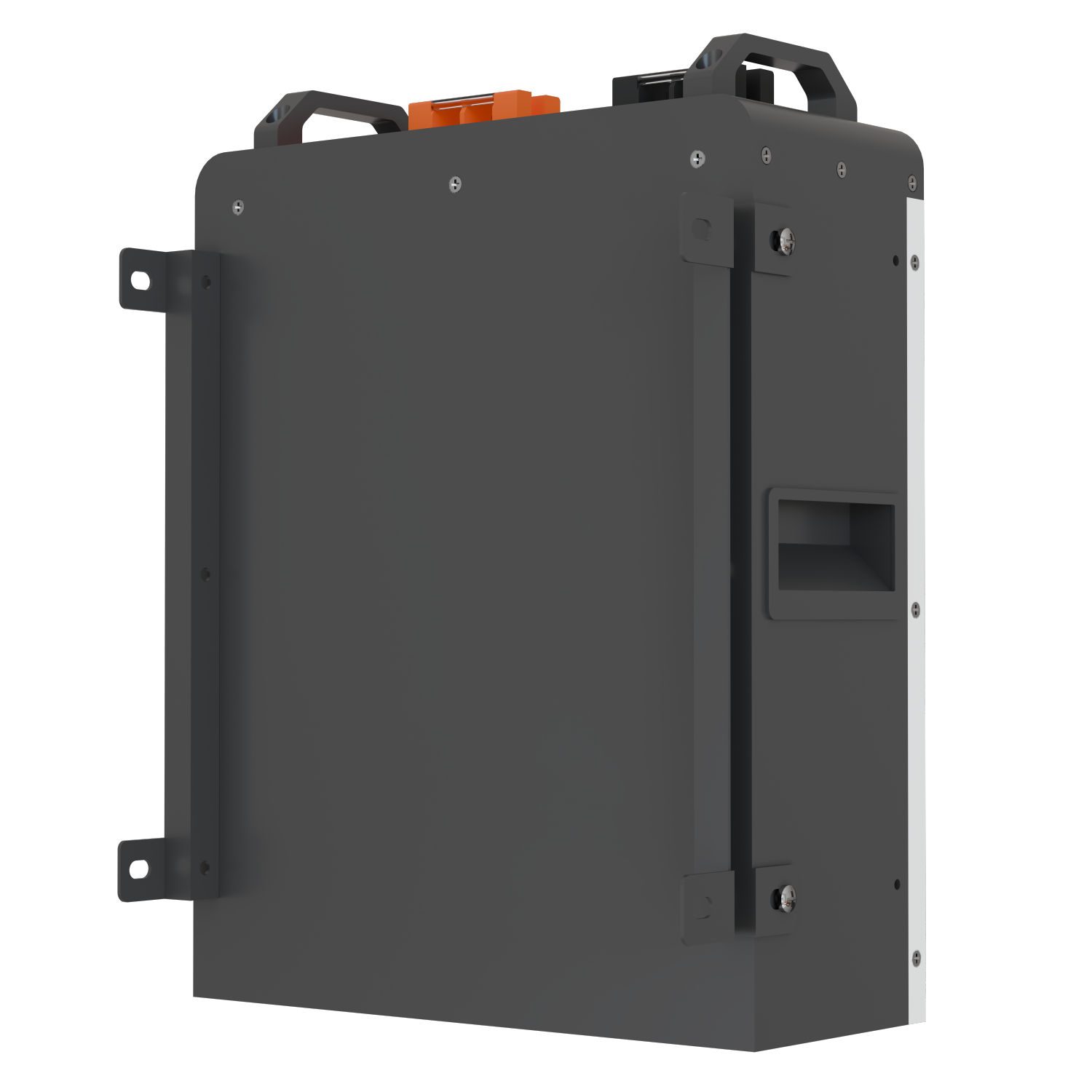

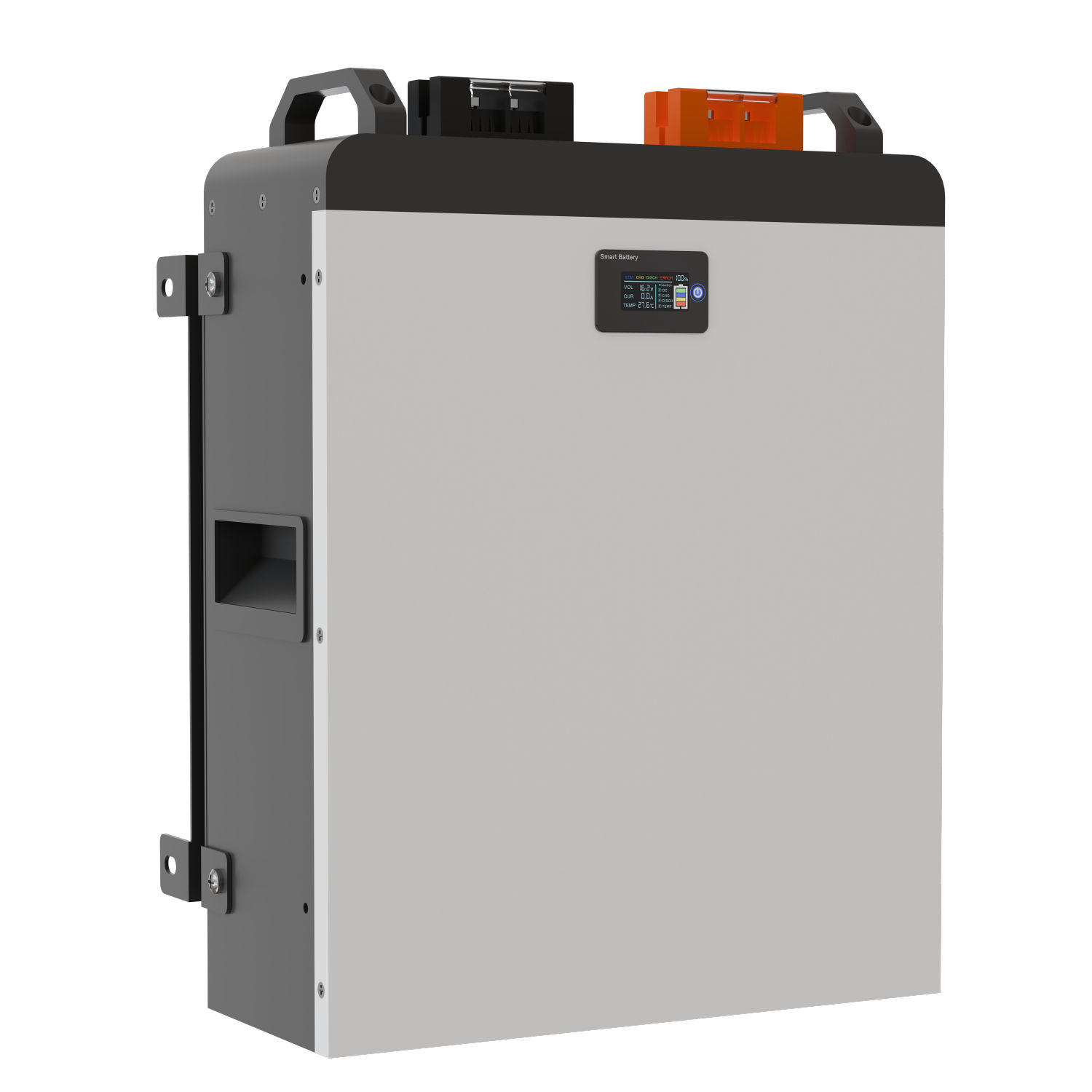

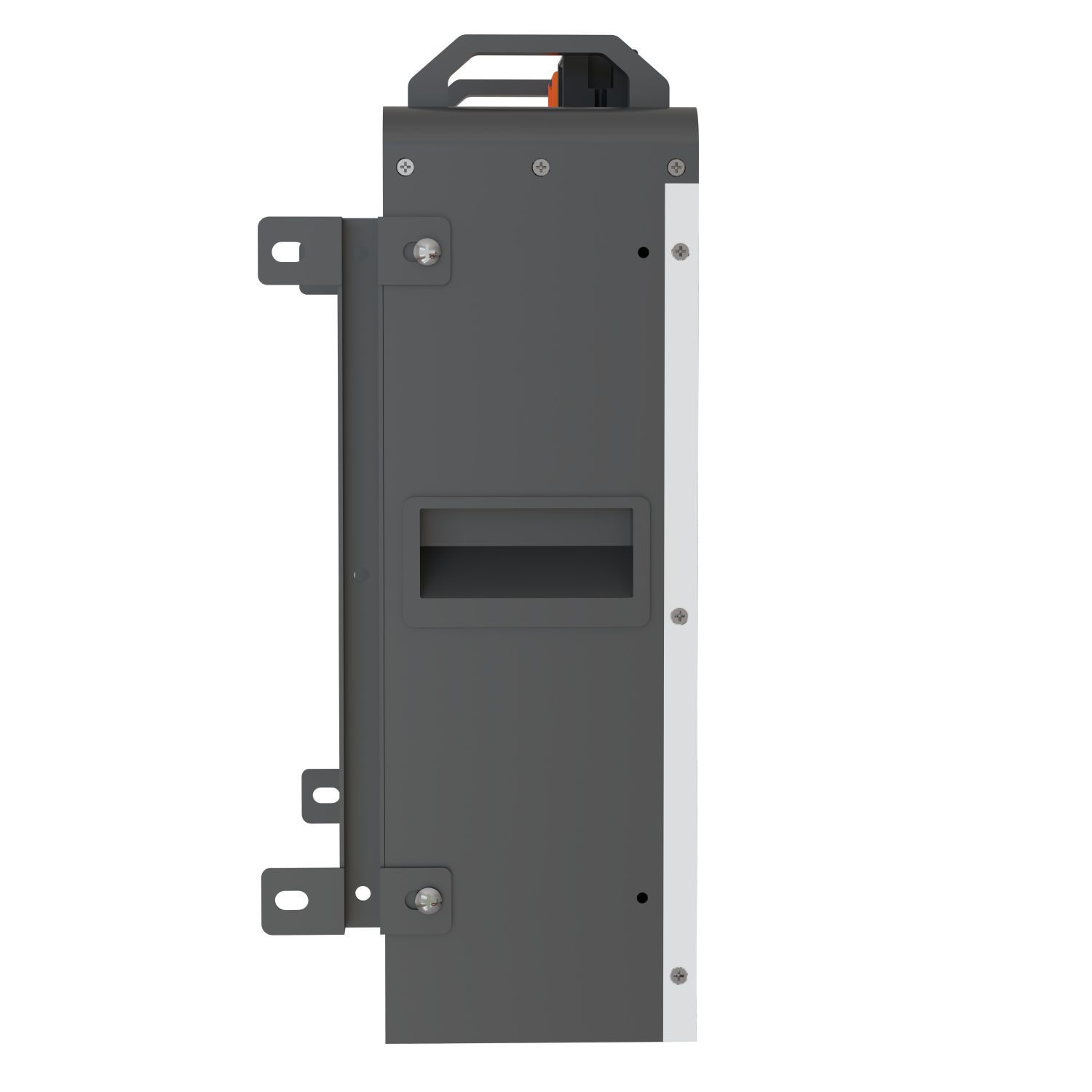

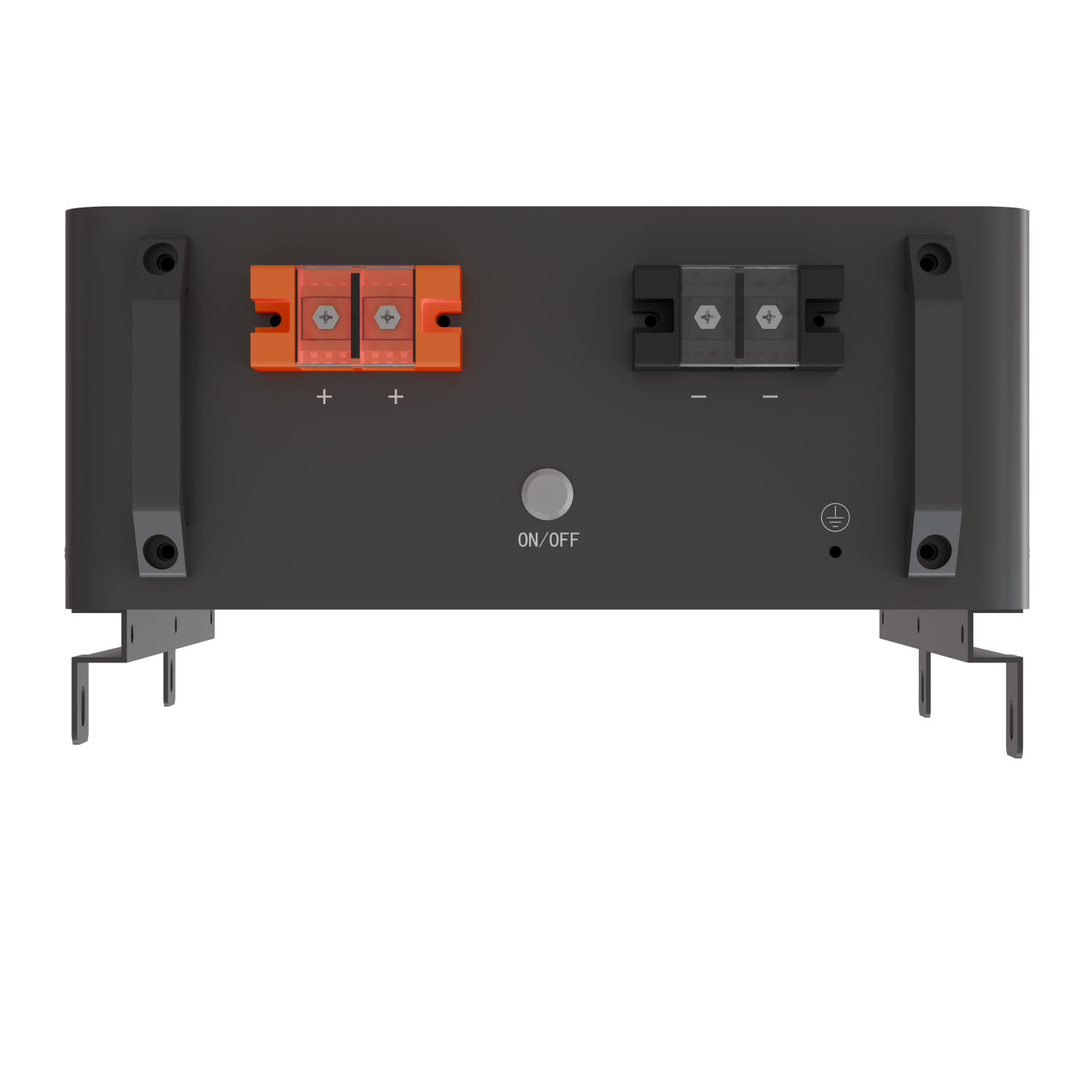

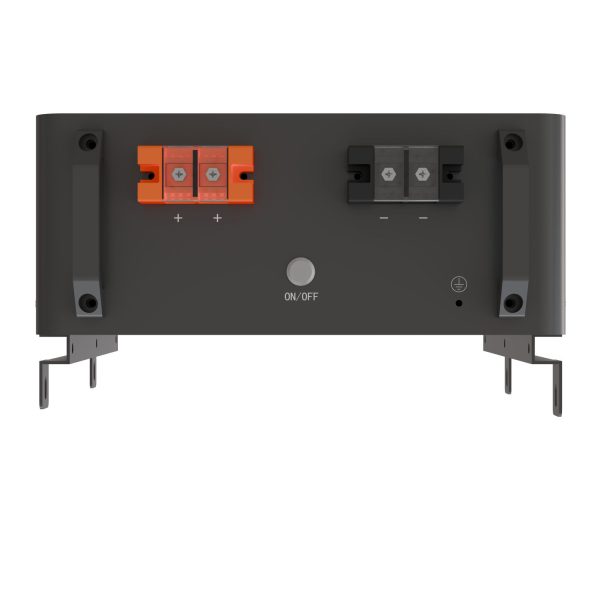

2.56kWh ES-BOX39S 25.6V 100Ah Wall mounted or Floor Standing energy storage Lithium battery

Safe & stable:
1. Built in BMS with multiple protections;
2. Real time monitoring of data through communication function.
Flexible & convenient:
1. Simple design and fast debugging speed;
2. Support multiple installation schemes, easy to install.
3.Compatible with multi-brand inverters.
Smart operation & management:
1.Remote O&M to improve operational efficiency;
2.Remote diagnosis OTA upgrade.
High performance:
1. High consistency. Low internal resistance ensures good consistency in battery discharge;
2. High capacity. Rate charge and discharge.

SKU: ES-BOX39S
Category:
Brands:
Get a Product Quote
Tags: , , , , , , ,
Product ModelES-BOX39SES-BOX39
Nominal Energy2.56kWh5.12kWh
Nominal Voltage25.6V51.2V
Nominal Capacity100Ah100Ah
Cell TypeLFPLFP
Standard Charge Voltage28V56V
Max. Discharge Current100A100A
Discharge Cut-off Voltage22.4V44.8V
Series & Parallel FunctionSupport in 2 series & 4 parallels connectionSupport in 16 parallels connection
Protection LevelIP20
Cycle Life *≥6000 Cycles(25°C+2°C,0.2C/0.2C,80%DOD)
Charge Temperature Range0~65℃℃
Discharge Temperature Range-20~65℃C
CertificationPack:CE/MSDS/UN38.3Cell: CE/IEC 62619 by TUV/UL1973 by Intertek
Dimensions340*420*140mm613*480*145mm
Weight27Kg52Kg
Warranty3 Years(under warranty terms)5 Years(under warranty terms)
Installation MethodWal Mounted/Stackable rack
Lcd Display ScreenWith LCD
