| Product Model | ES-BOX37 |
|---|---|
| Nominal Voltage | DC51.2V |
| Nominal Capacity | 100Ah |
| Nominal Energy | 5.12kWh |
| Dimension | 480*630*155mm |
| Net Weight | ~51kg |
| Protection Level | IP20 |
| Rated Energy Of Battery | 5.12kWh |
| Rated Capacity Of Battery | 100Ah |
| Max. Charging Current | 100Ah |
| Max. Discharging Current | 100Ah |
| Charging Temperature Range | 0℃~60℃ |
| Discharge Temperature Range | -20C~60C |
| Suggested Discharge Depth | 80% |
| Max.Number Of Parallel Batteries | 16 |
| Supporting Communication Methods | RS232/MODBUS/CANBUS |

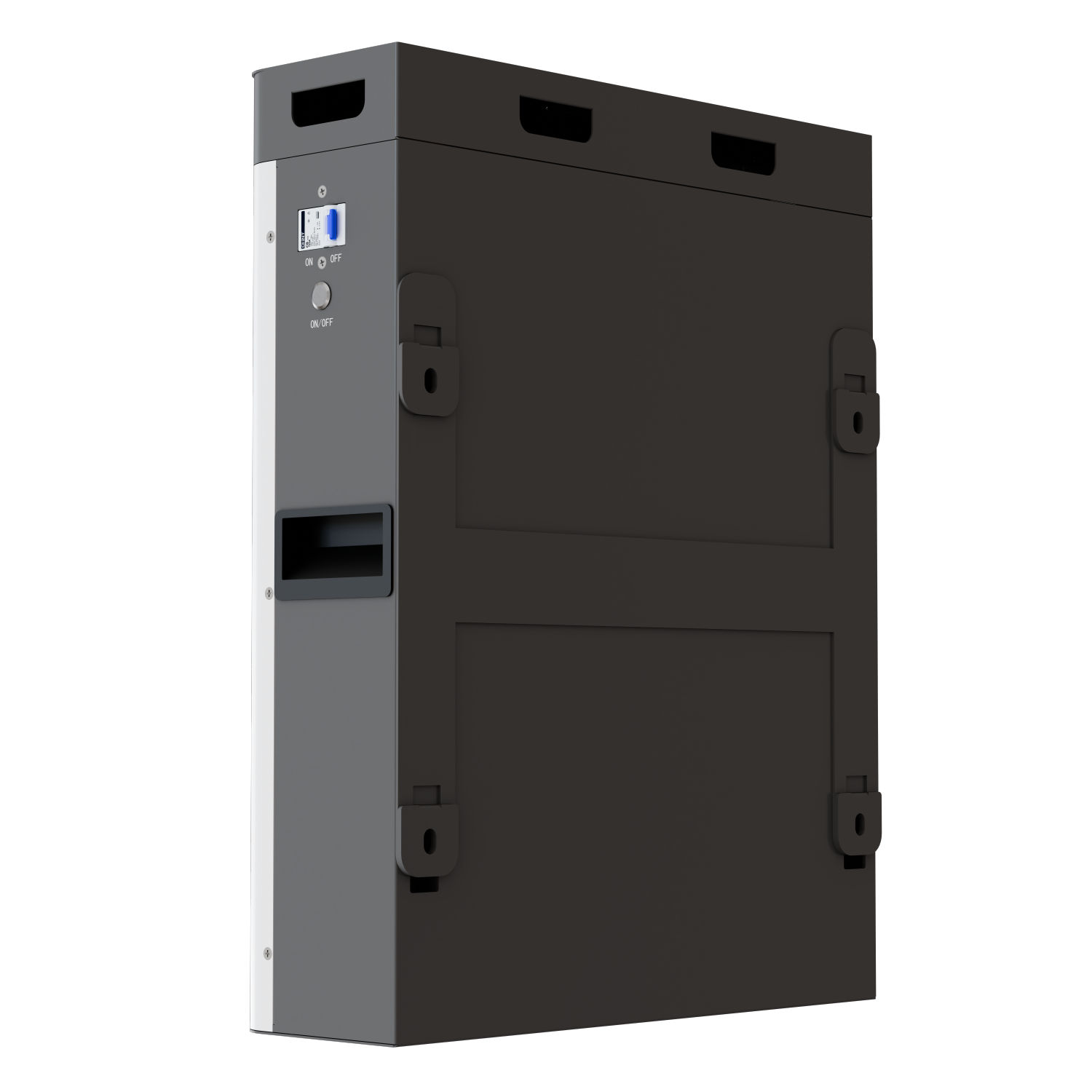

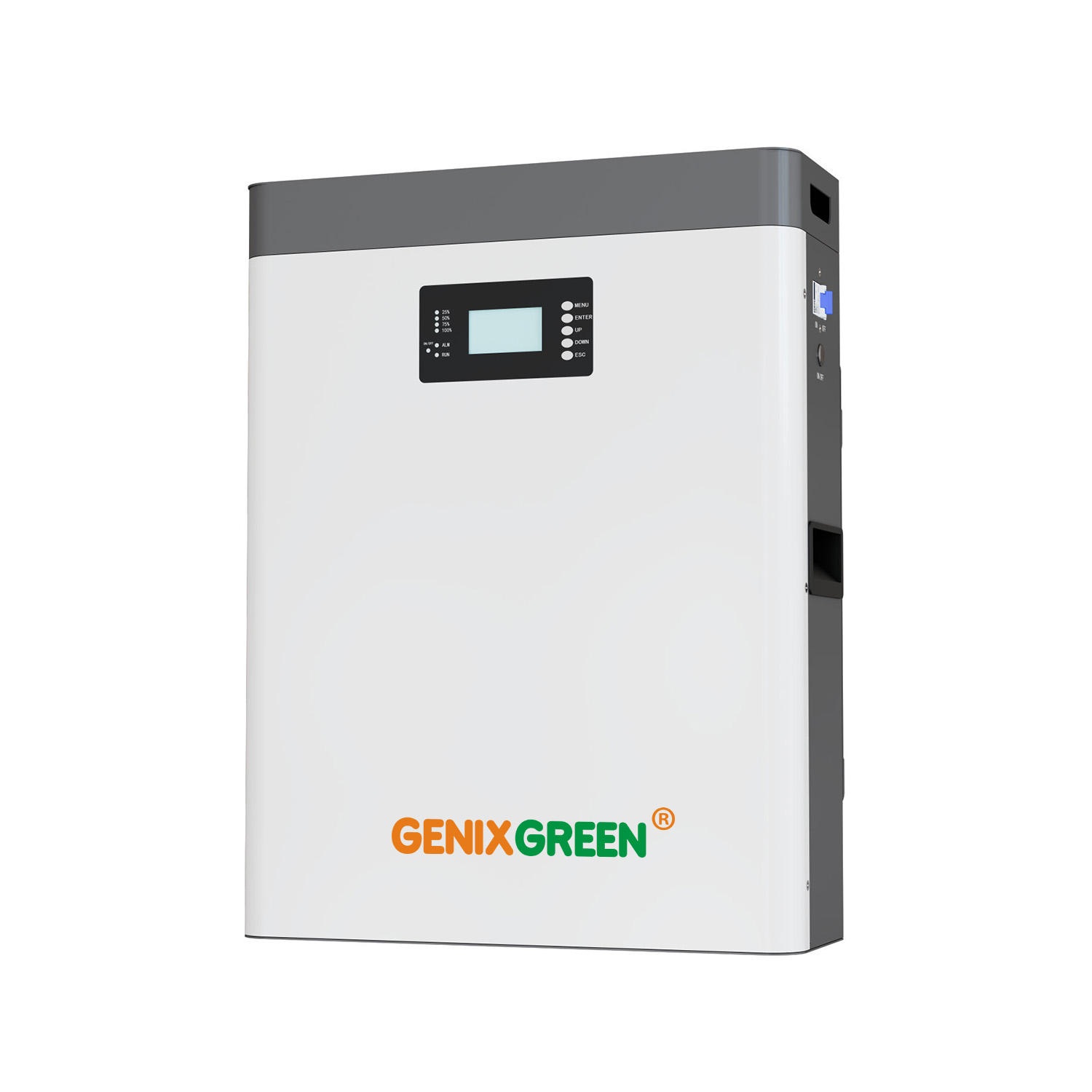

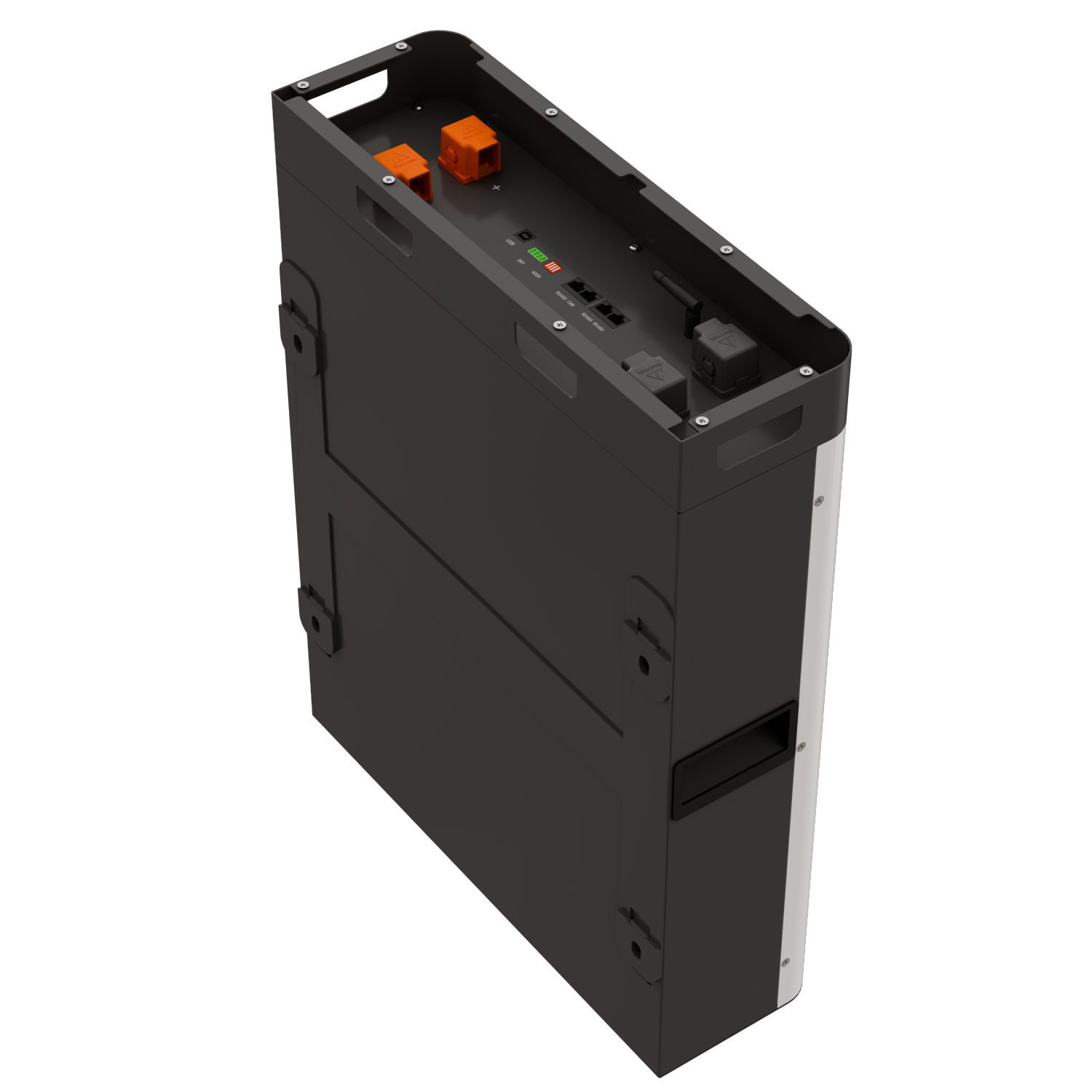

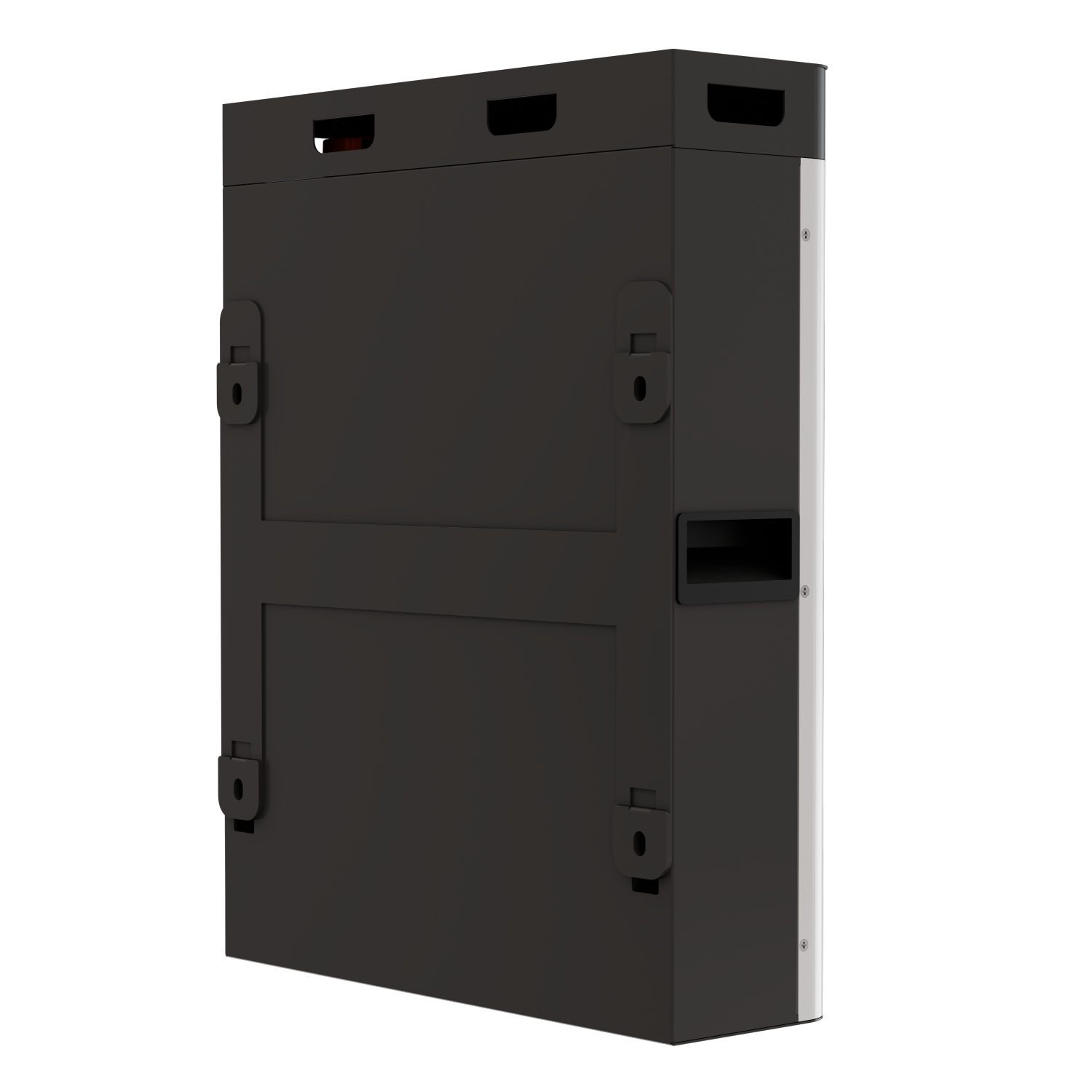

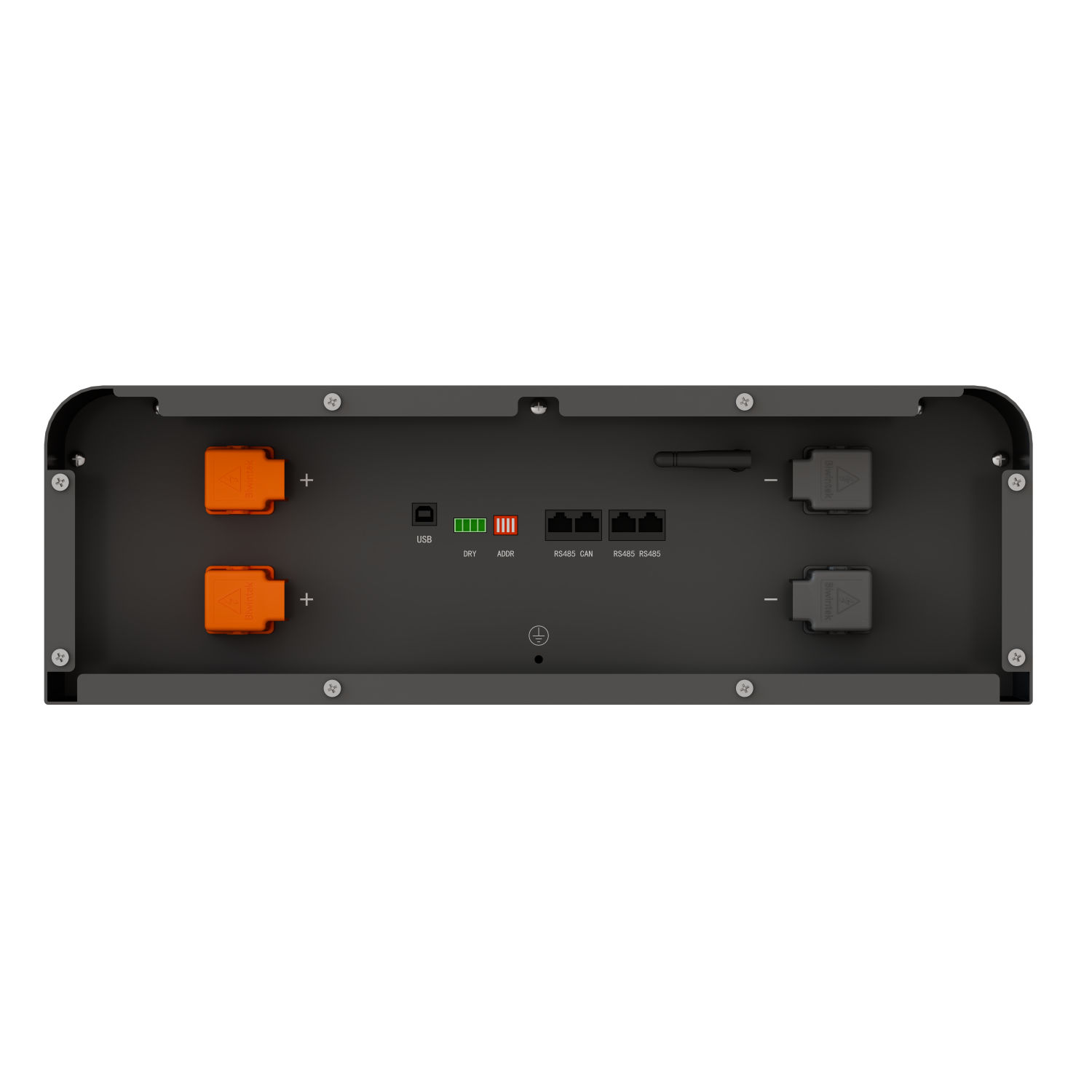

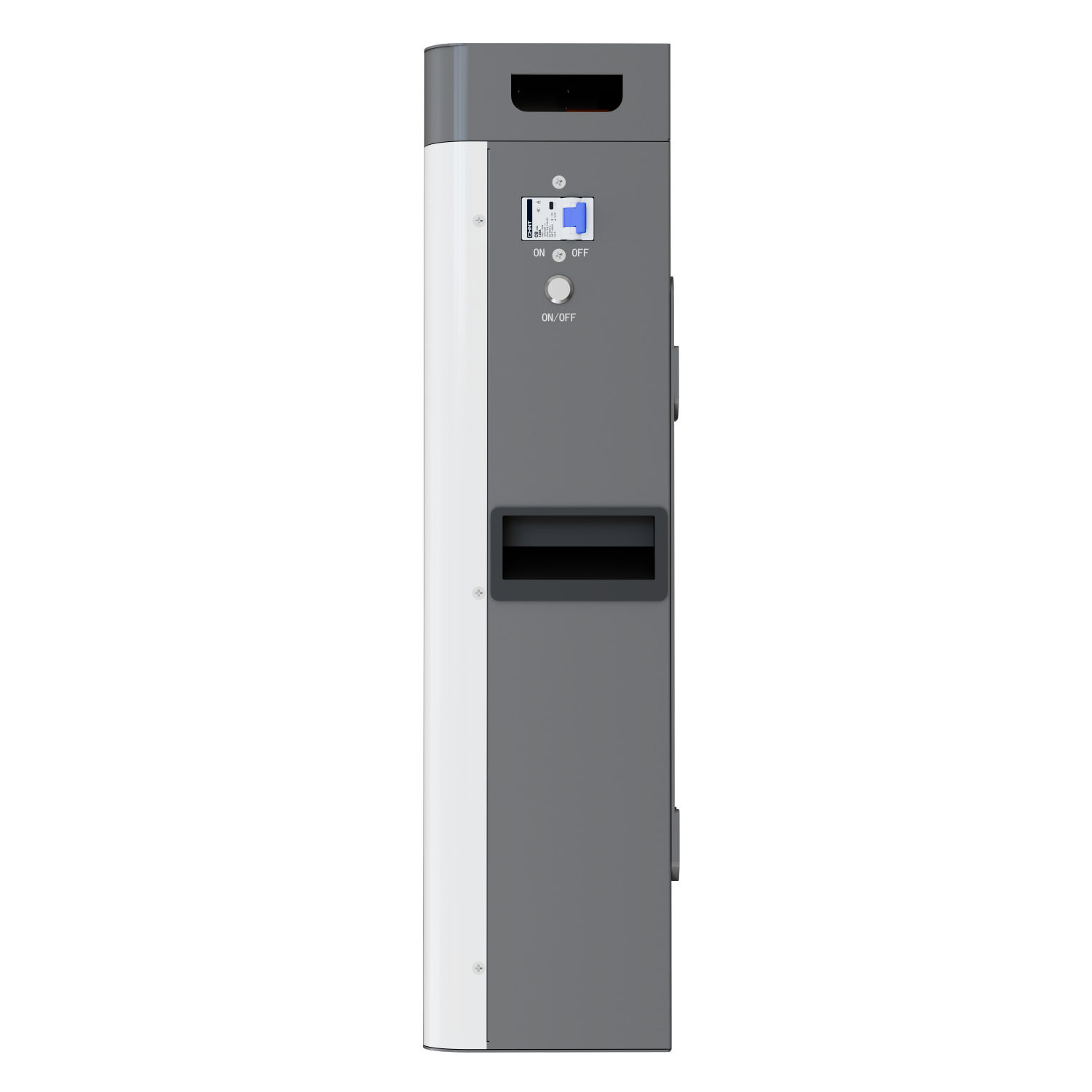

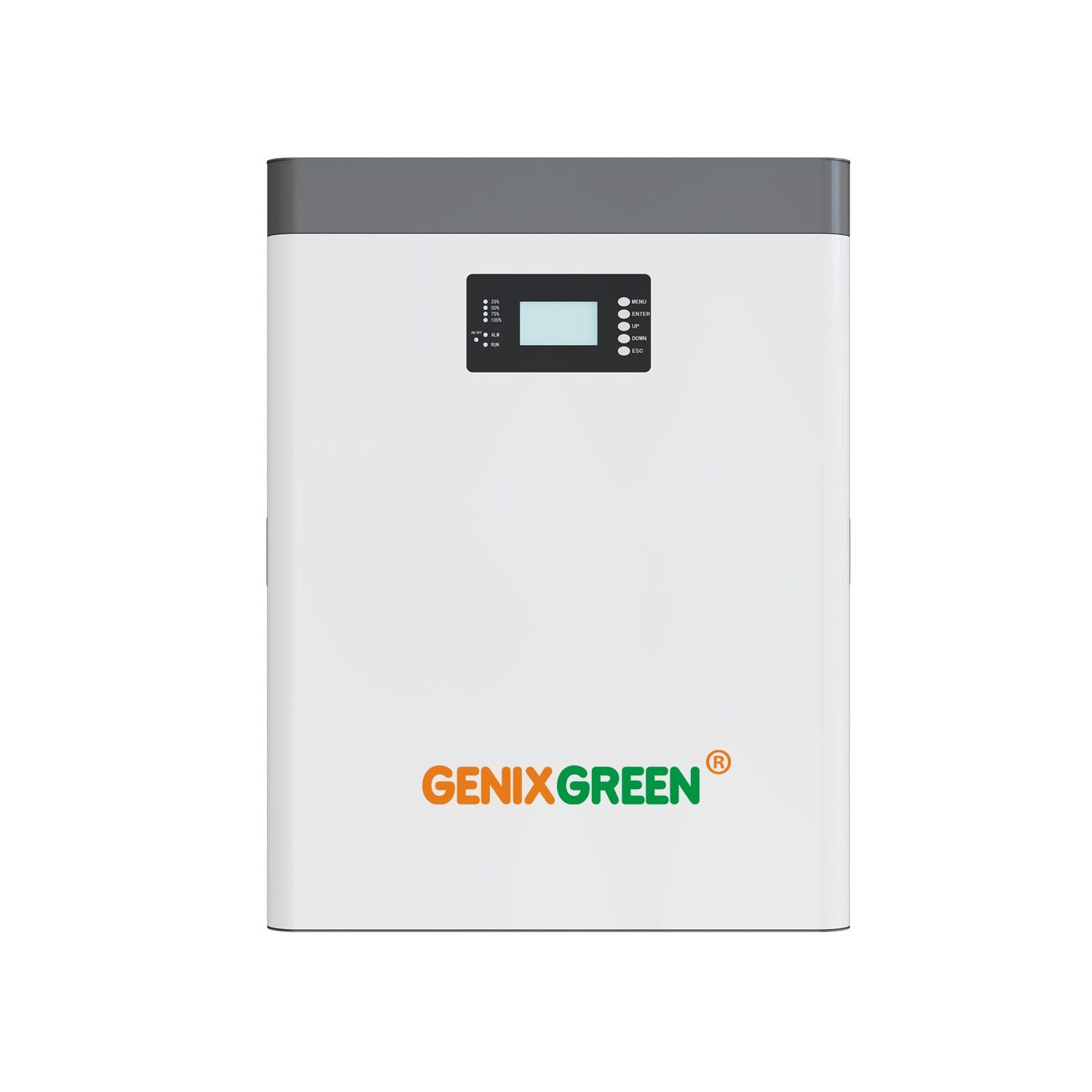

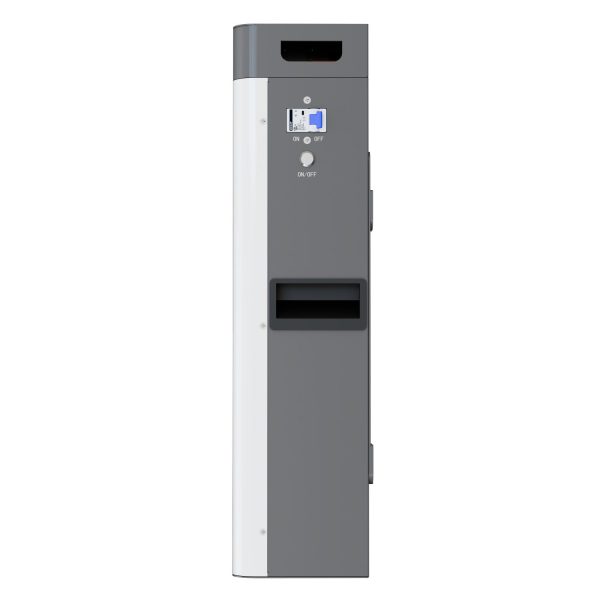

5.12kWh ES-BOX37 51.2V 100Ah Wall mounted or Floor Standing WiFi remote monitoring energy storage Lithium battery
Safe & stable:
1. Built in BMS with multiple protections;
2. Real time monitoring of data through communication function.
Flexible & convenient:
1. Simple design and fast debugging speed;
2. Support multiple installation schemes, easy to install.
3.Compatible with multi-brand inverters.
Smart operation & management:
1.Remote O&M to improve operational efficiency;
2.Remote diagnosis OTA upgrade.
High performance:
1. High consistency. Low internal resistance ensures good consistency in battery discharge;
2. High capacity. Rate charge and discharge.
Tags: 100Ah, 51.2V, 5kWh, ES-BOX37, Floor standing, Indoor, Outdoor, Wall mounted, WiFi, WiFi remote monitoring
