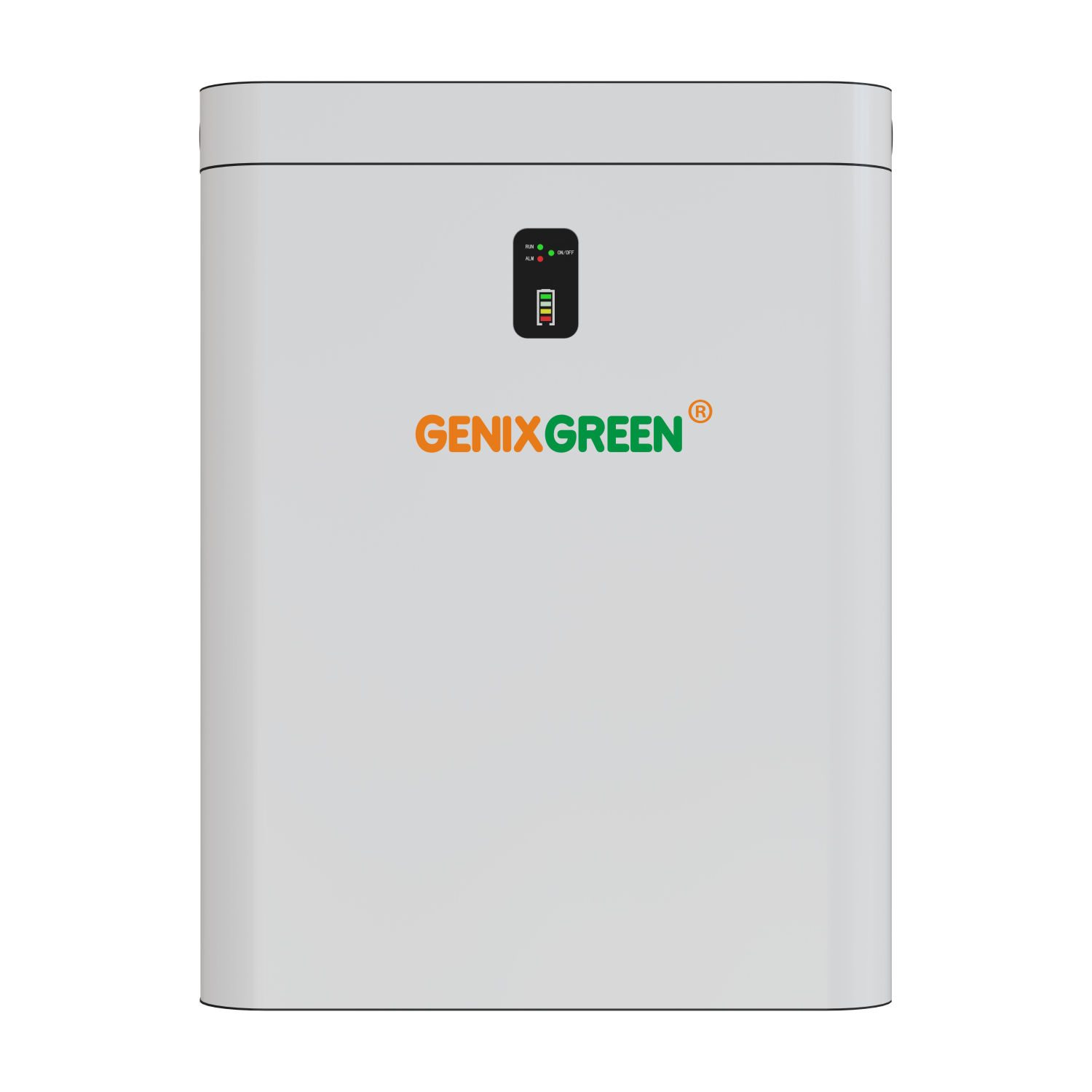

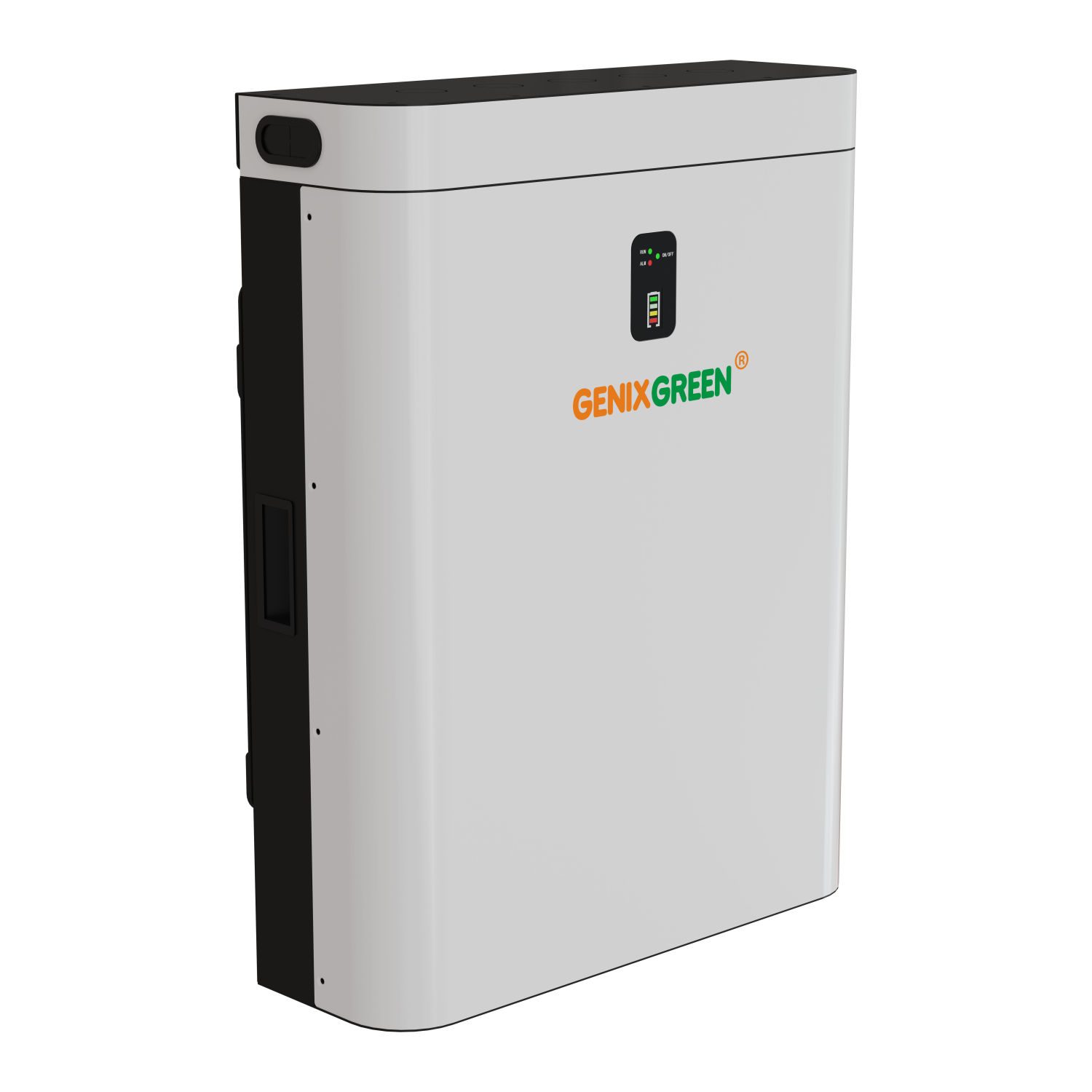

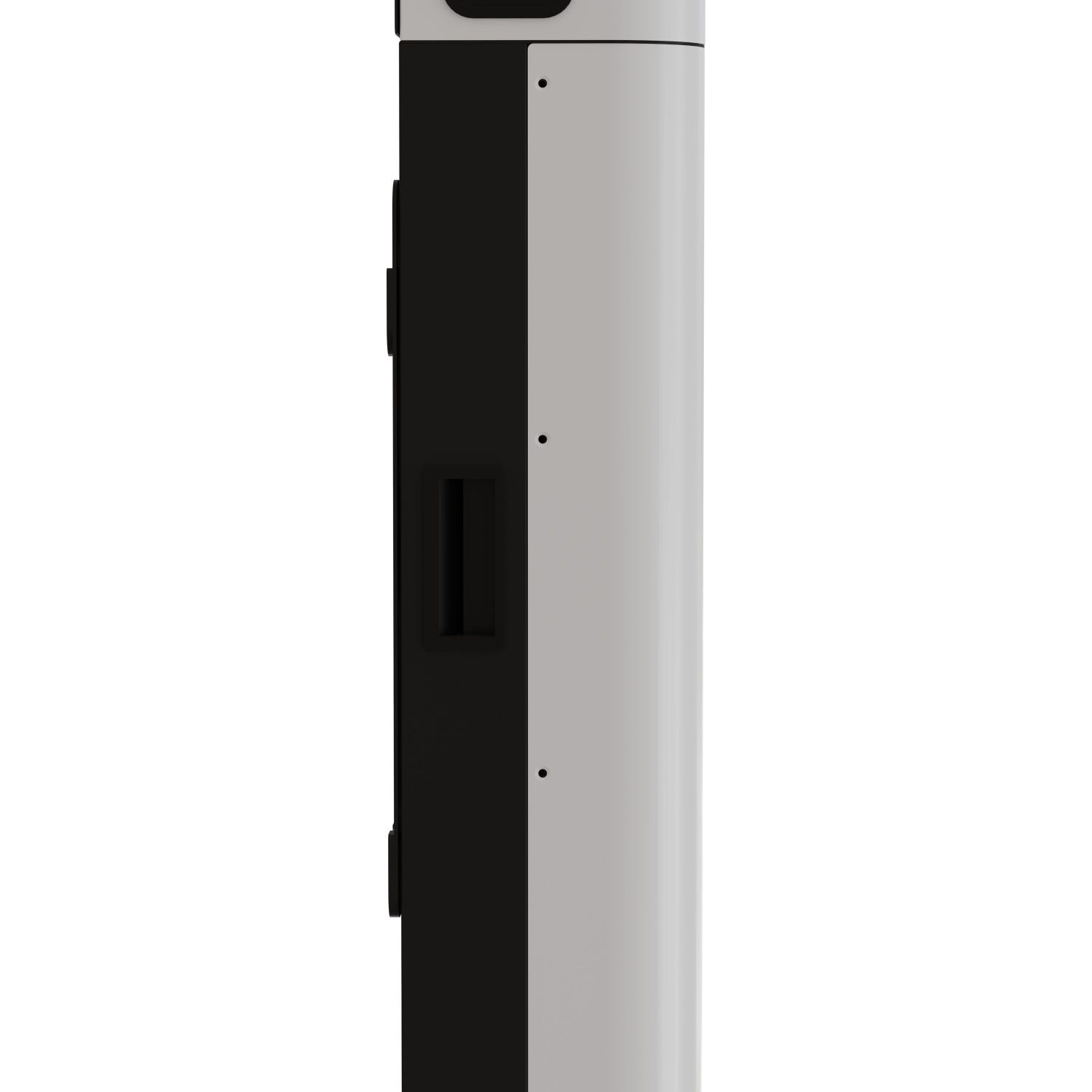

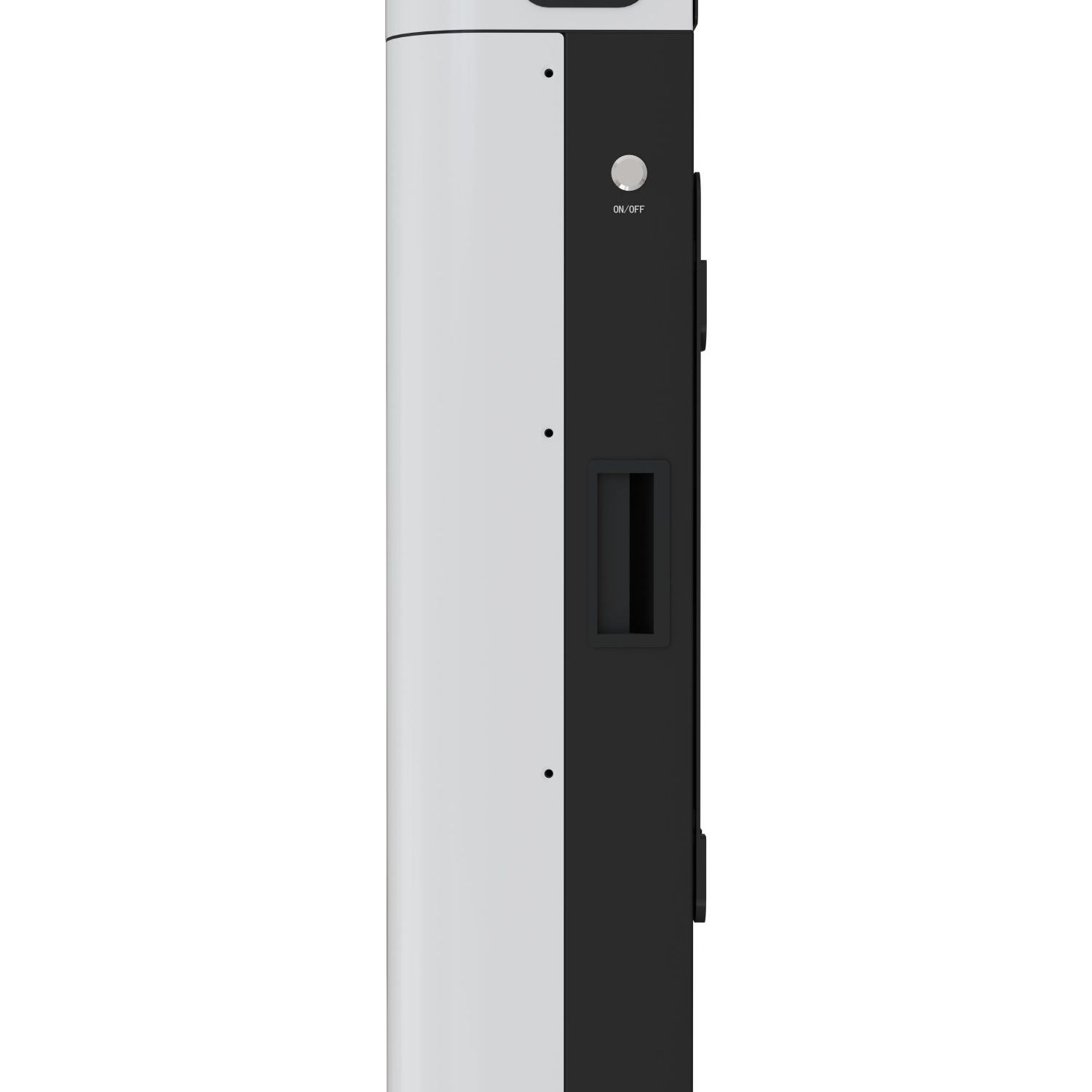

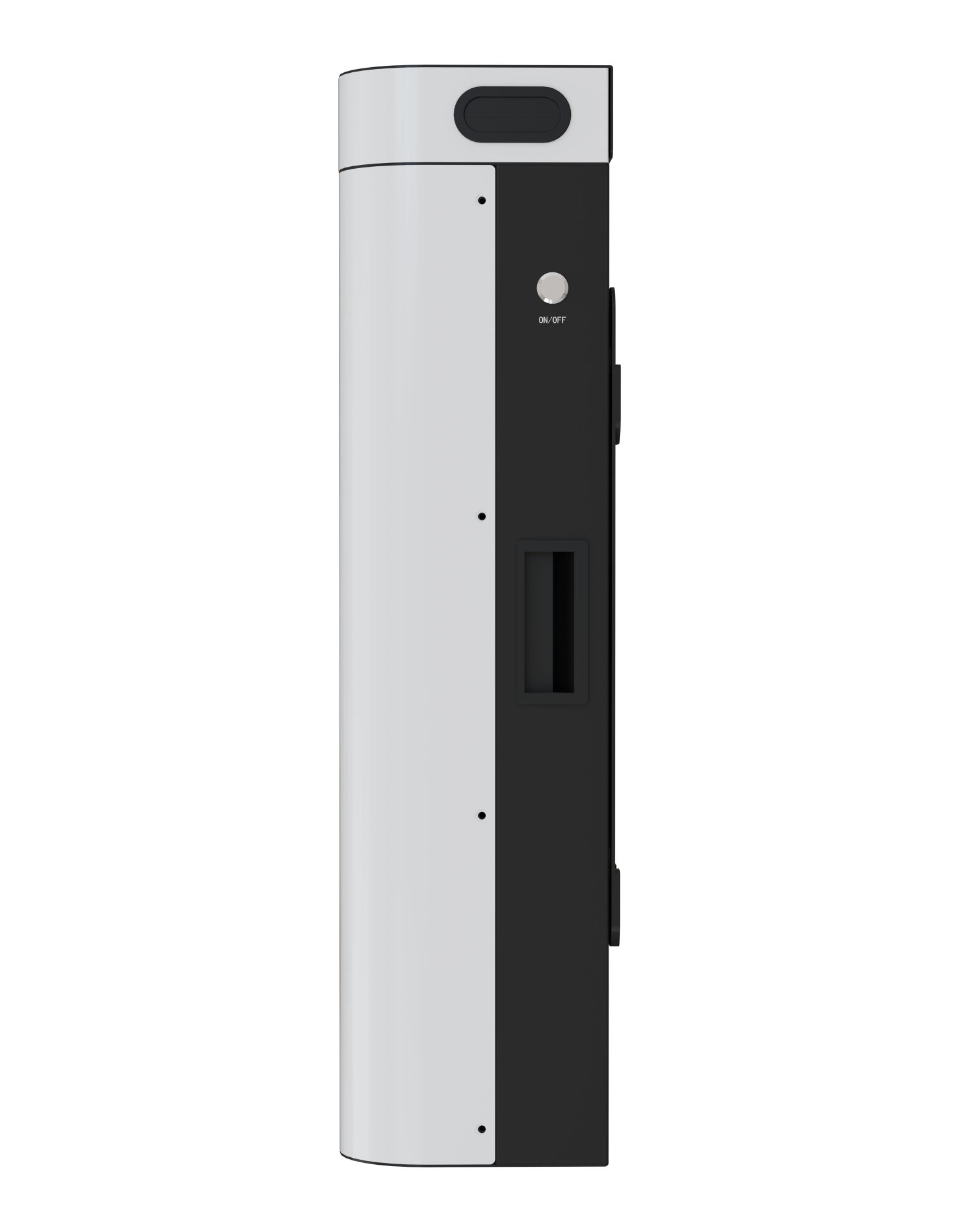

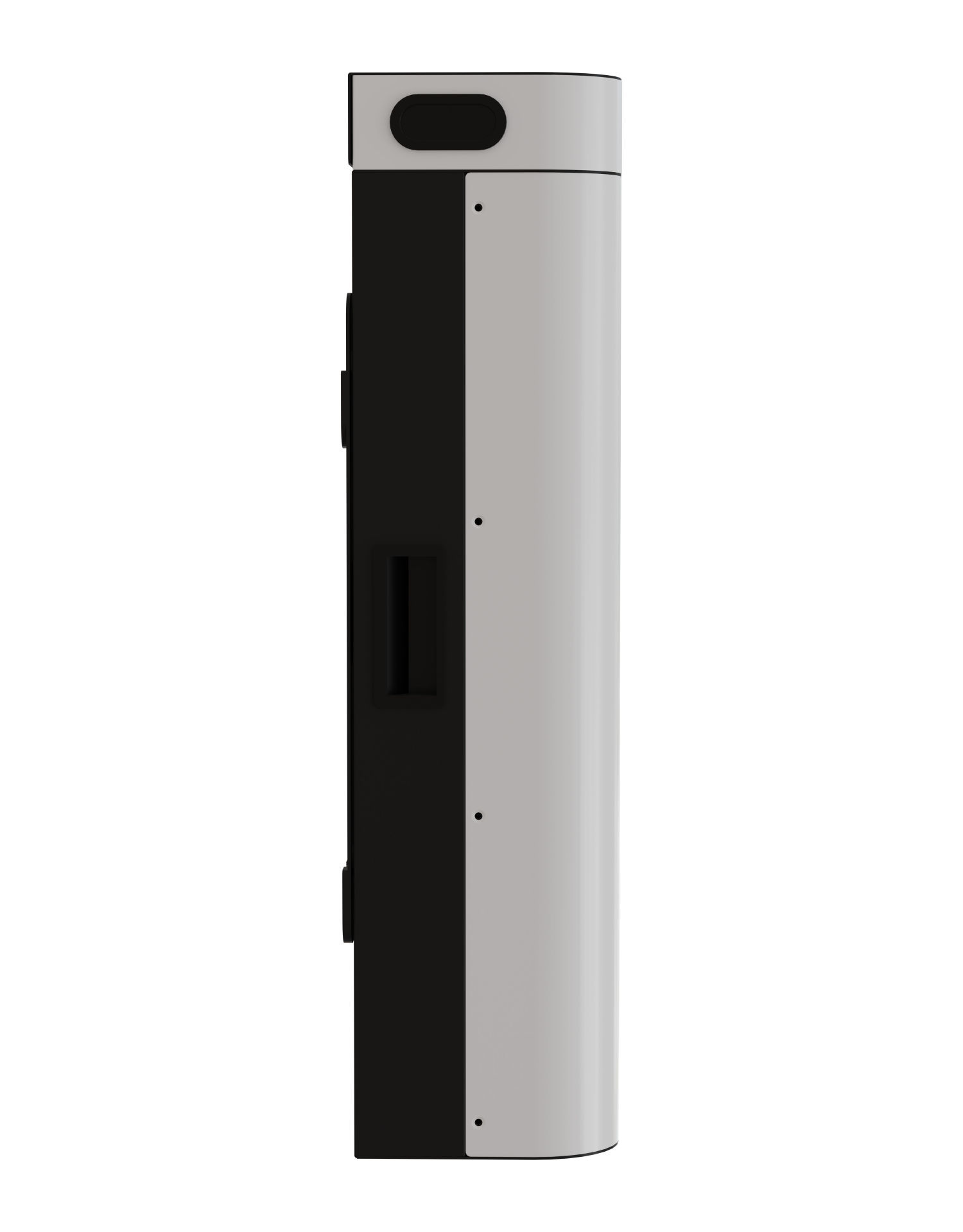

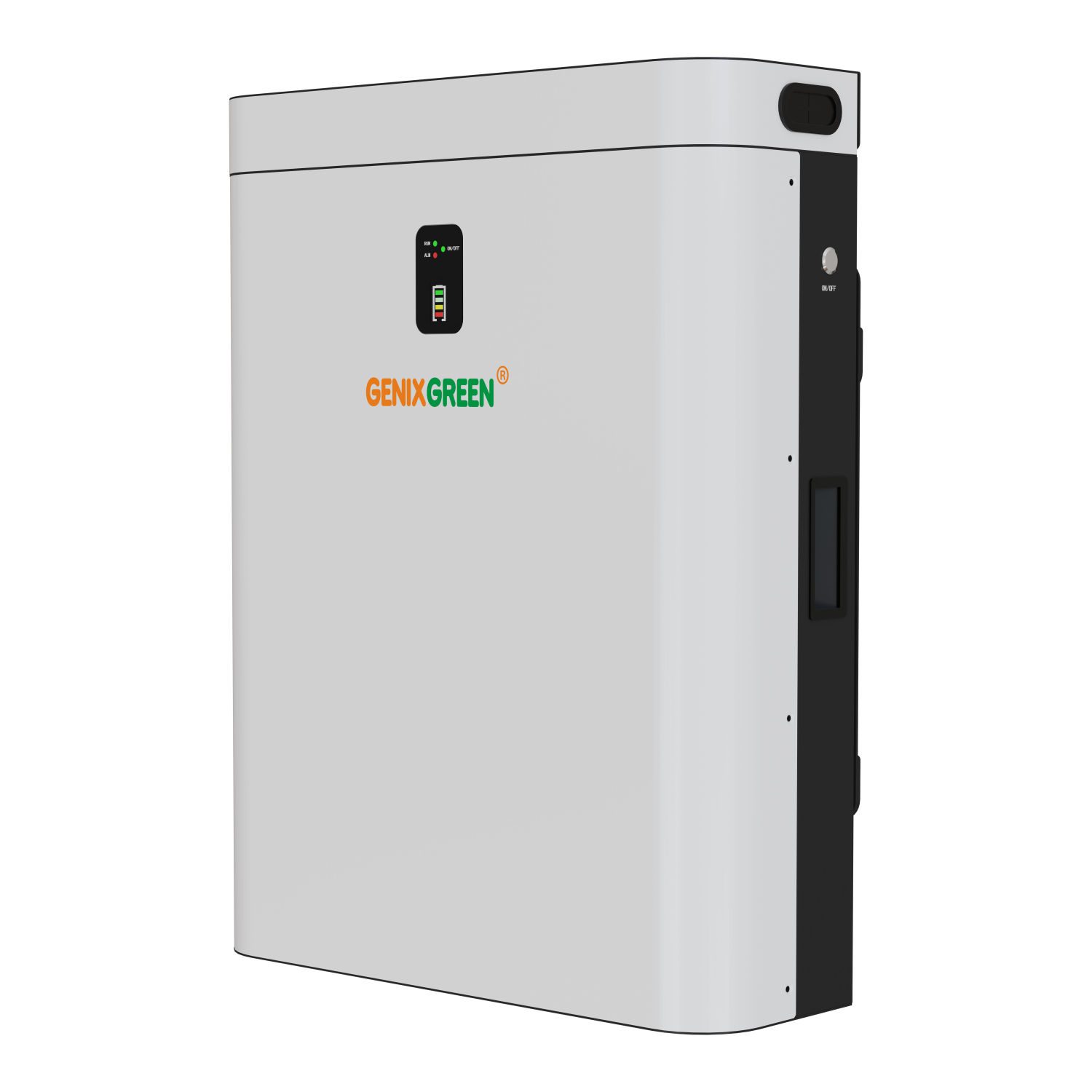

5kWh ES-BOX26 51.2V 100Ah Wall mounted energy storage Lithium battery

Safe & stable:

1.Built in BMS with multiple protections;

2.Real time monitoring of data through communication function.

Flexible & convenient:
1. Simple design and fast debugging speed;
2. Support multiple installation schemes, easy to install.
3.Compatible with multi-brand inverters.
Smart operation & management:
1.Remote O&M to improve operational efficiency;
2.Remote diagnosis OTA upgrade.
High performance:
1. High consistency. Low internal resistance ensures good consistency in battery discharge;
2. High capacity. Rate charge and discharge.

SKU: ES-BOX26
Category:
Brands:
Get a Product Quote
Tags: , , , , ,
Weight 52 kg
Dimensions 48 × 15.5 × 63 cm
Product Model

ES-BOX26
Nominal Energy

5.12kWh
Nominal Voltage

51.2V
Nominal Capacity

100Ah
Cell Type

LFP
Standard Charge Voltage

56.8V
Max. Discharge Current

100A
Discharge Cut-Off Voltage

44.8V
Parallel Function

Support 16 Units In Parallels
Communication Interface

RS485、USB、CAN
Cycle Life *

≥6000 Cycles (25°C±2°C, 0.2C/0.2C, 80%DOD)
Charge Temperature Range

0~55℃
Discharge Temperature Range

-20~55℃
Certification

Pack: CEI 0-21/CE/IEC 62619/UL1973 by Intertek/MSDS/UN38.3
Cell: UL 1642/IEC 62619/CE/EMC/ROHS/MSDS/UN38.3
Dimension

480*630*155mm
Net Weight

52Kg

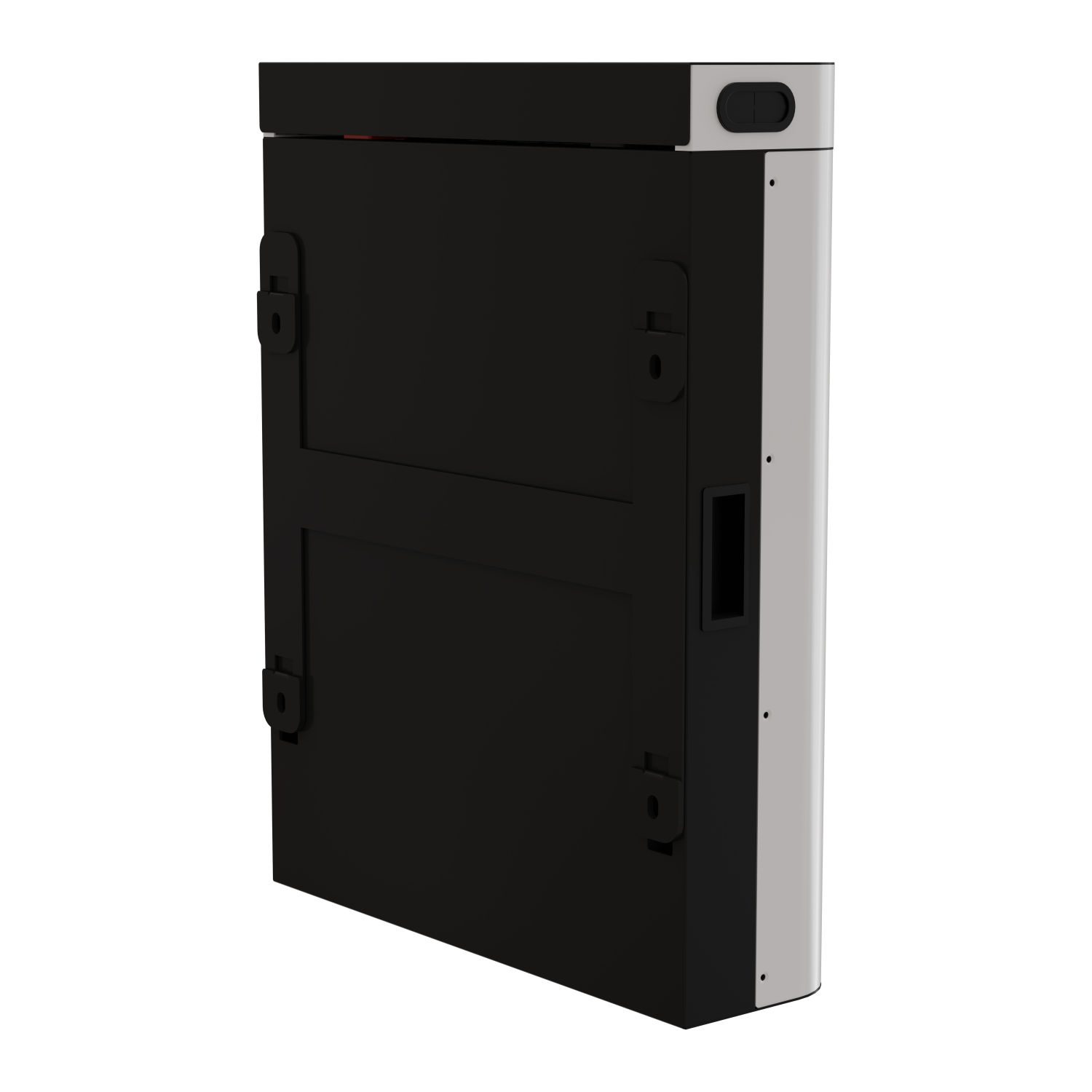

Installation Method

Wall Mounted/Floor Standing
Warranty

5 Years(under warranty terms)
Optional

WiFi remote monitoring
Waterproof grade

IP 20
