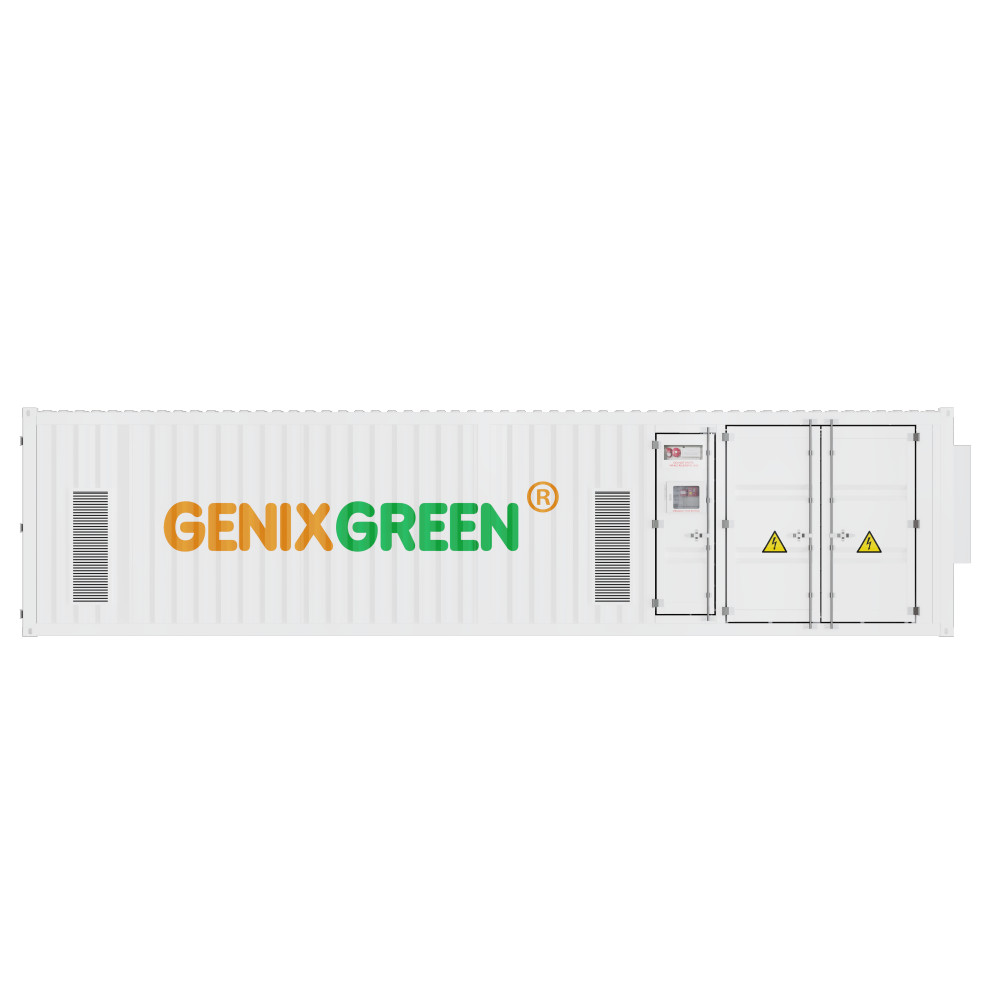

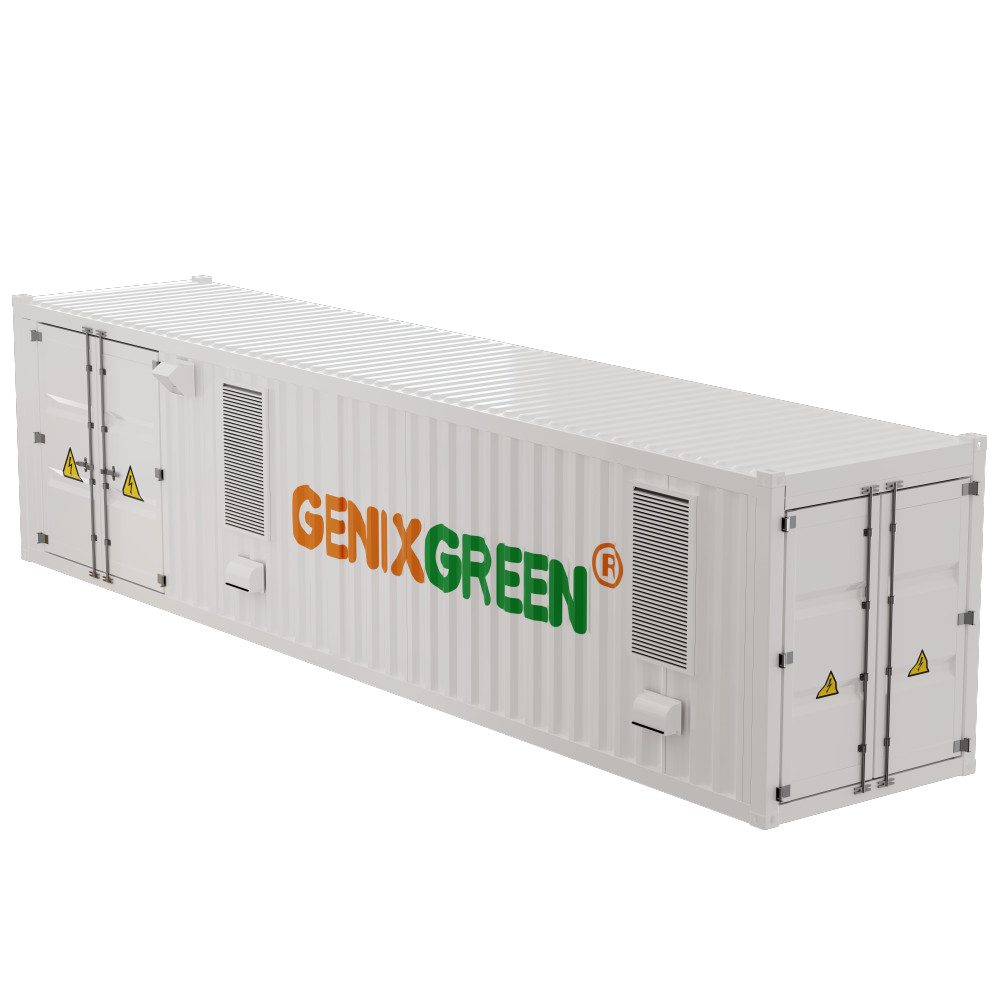

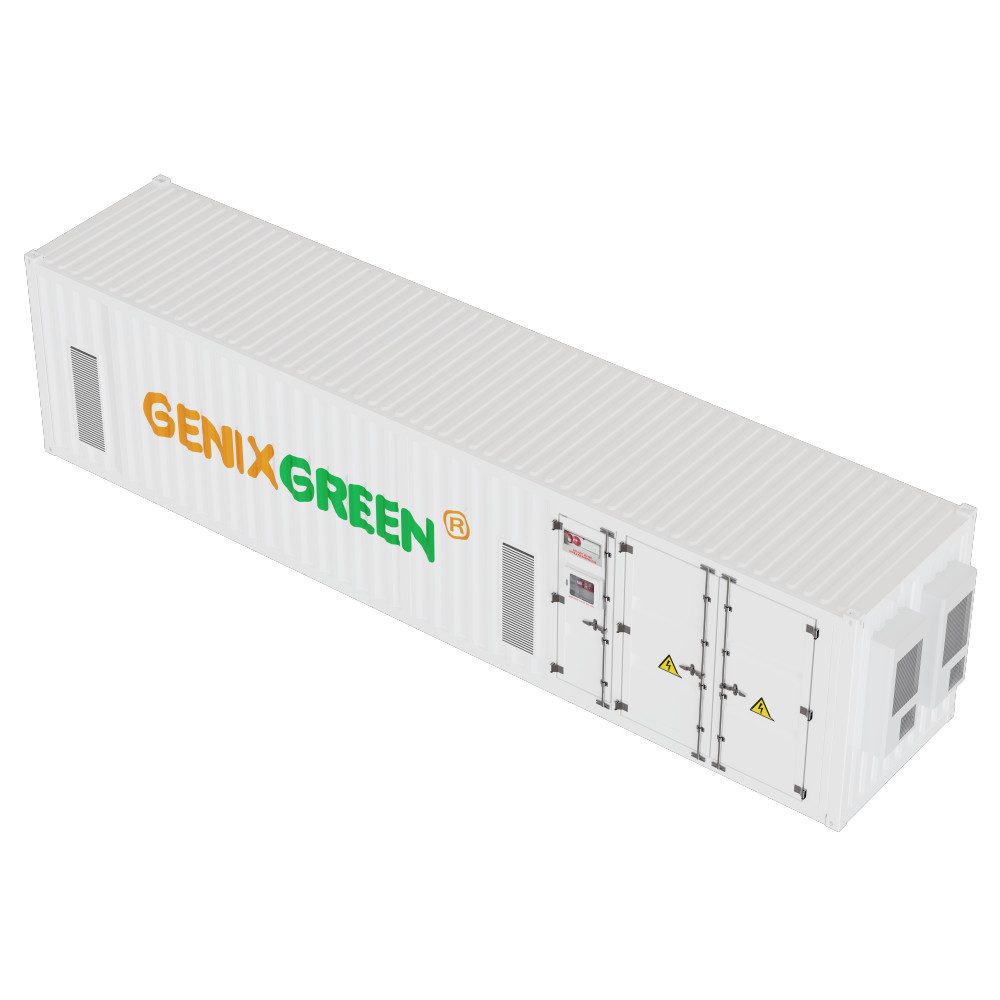

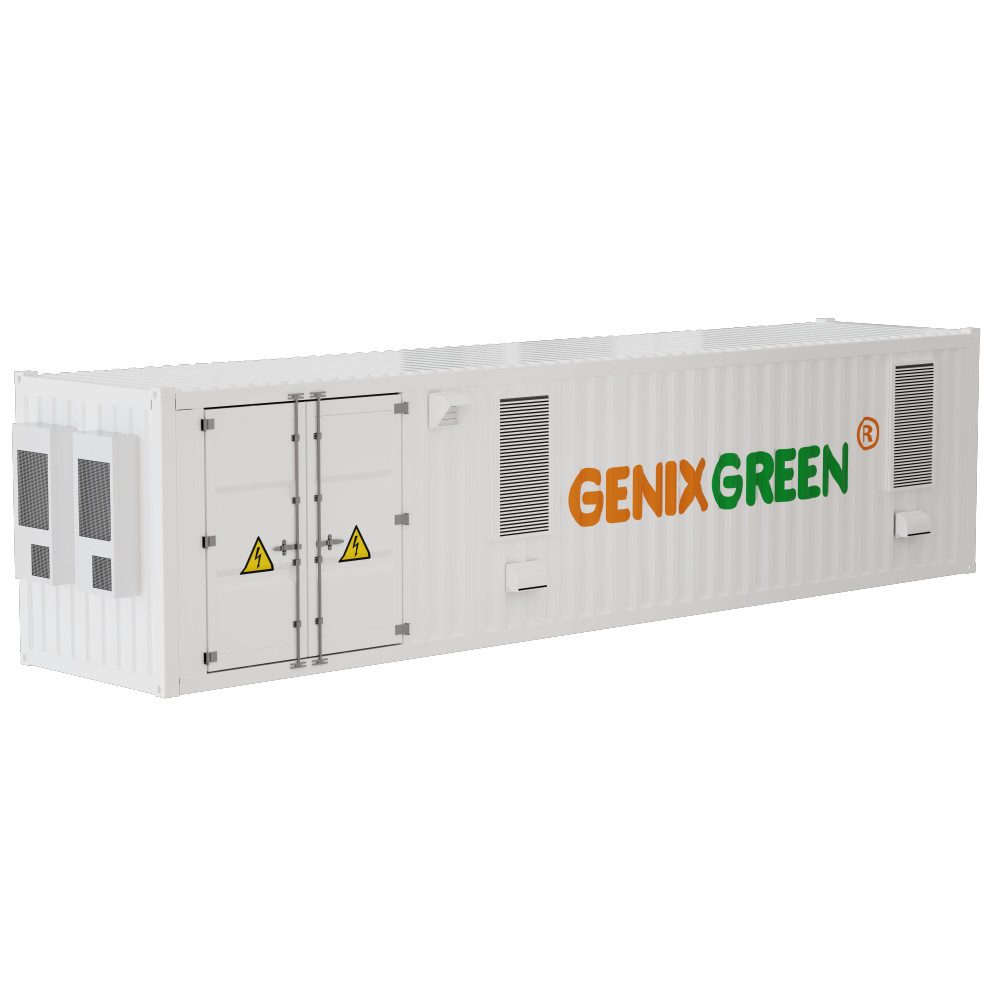

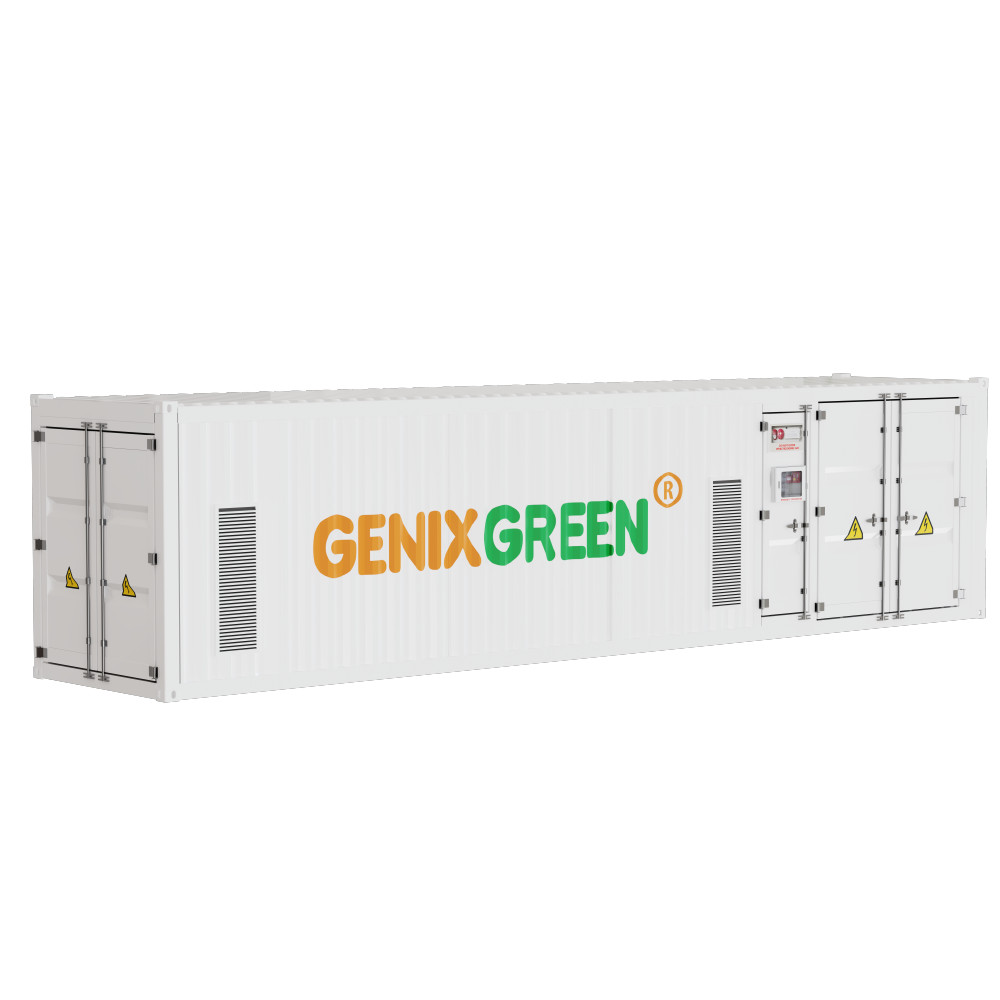

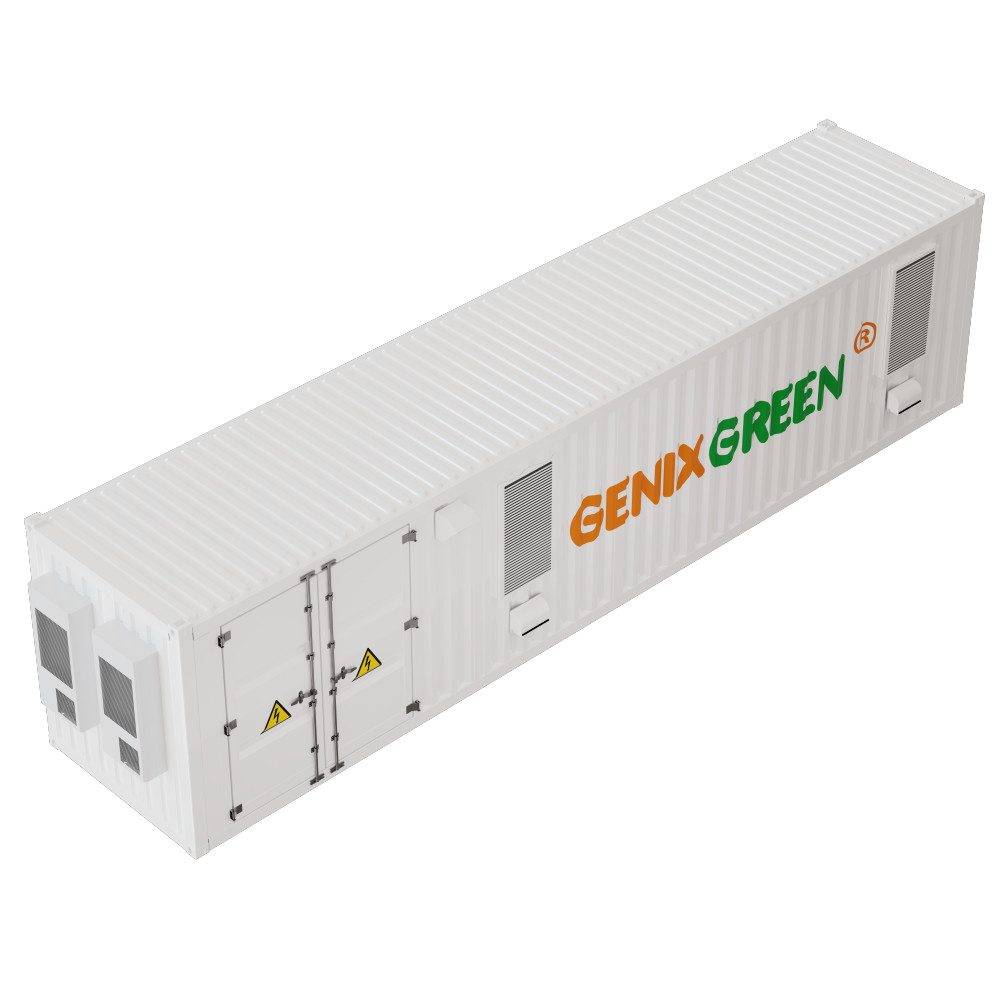

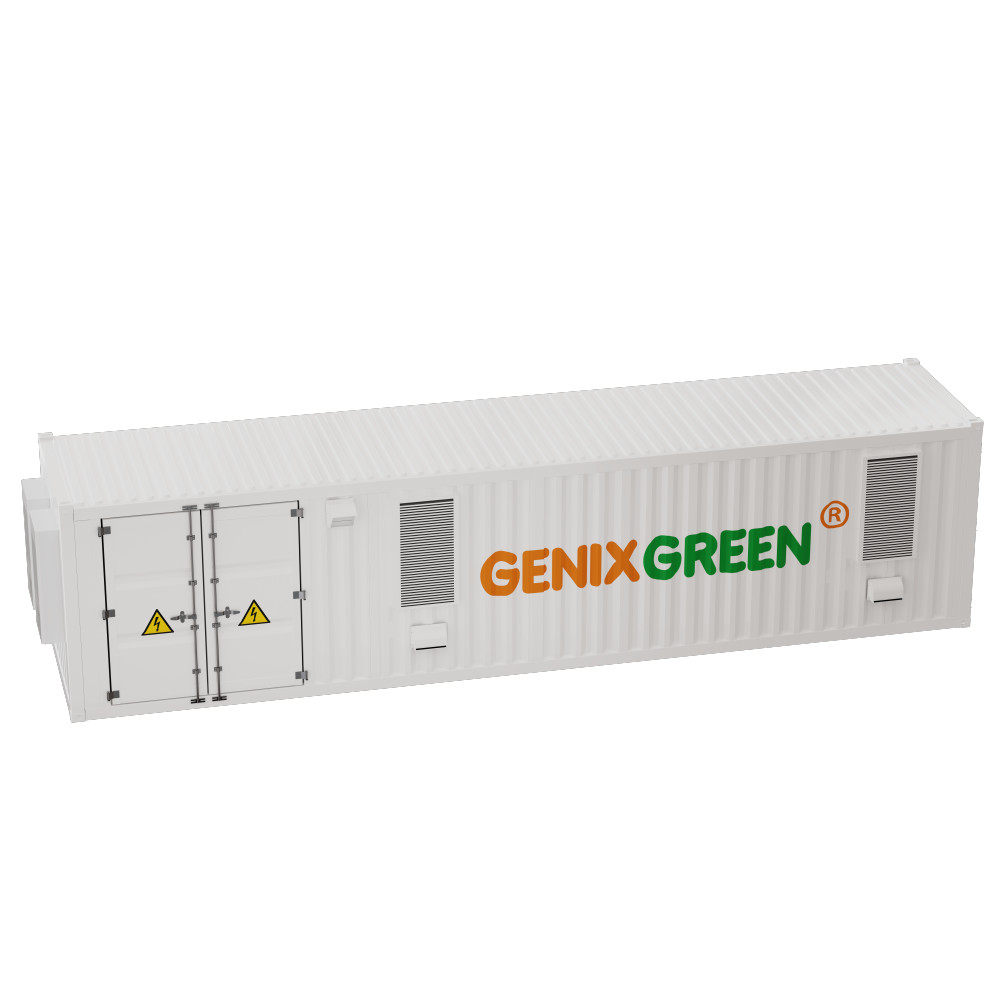

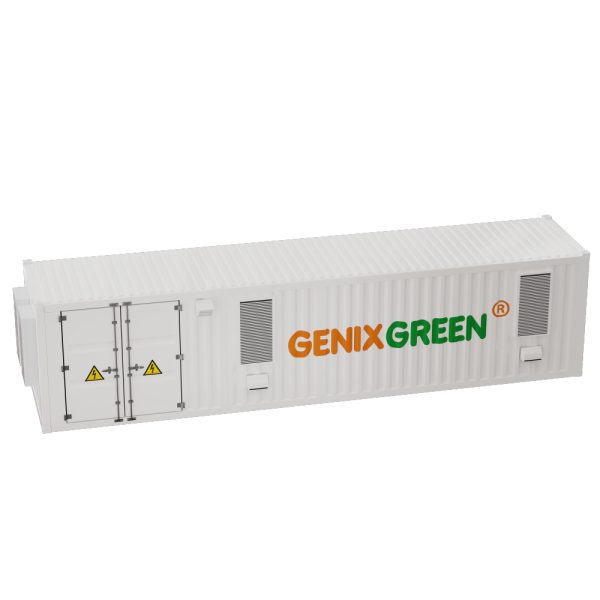

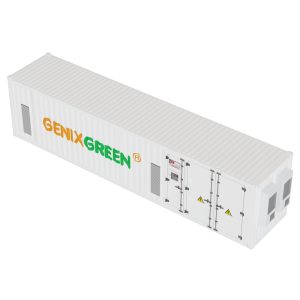

GENIXGREEN Titan-2.15MWh+1MW High Voltage 20 Feet Commercial & Industrial BESS Outdoor Energy Storage System

Real-time data monitoring
1.7*24 hours real-time and accurate display of operating data of mains electricity, photovoltaics, energy storage, charging piles, and microgrids.
2. Use multi-dimensional data analysis and statistics on energy consumption and income data, and display them visually.
3. Support the remote control of the power station status anytime and anywhere from the site and the cloud.
4. Real-time push of station operation reports

Energy consumption analysis
1. Manage the entire life cycle of equipment and analyze the rules of abnormal points.
2. Data correlation analysis to find the relationship between equipment, strategies and energy consumption.
3. Find energy consumption optimization points and improve energy conversion efficiency.

Intelligent prediction
1. Load prediction and regulation.
2. Demand side response analysis, prediction and management.
3. Photovoltaic power generation forecast analysis.
4. Battery charge and discharge model analysis and SOH prediction.

Efficient management
1. Timely early warning notification of equipment abnormalities and failures.
2. Online and offline 24-hour efficient operation and maintenance management.
3. Centralized control management and operation strategy of the power station.
4. Smart networking large screen, energy cockpit.

SKU: Titan – 2.15MWh+1MW
Category:
Brands:
Tags: , , , , , , ,
Product ModelTitan-2.15MWh+1MW
Cell Parameters3.2V280Ah LFP
Pack Parameters1P16S
Battery Cluster1P16S*15
System Combination2*5*1P240S
Rated Energy2.15MWh
Rated Voltage768V
Operating Voltage Range720-850V
Rated Multiplier0.6P
Photovoltaic Side Parameters
Rated Voltage600V
Rated Current100A
MPPT Max. Range420-850V
MPPT Rated Power50kW
Number Of MPPT Channels2*10
AC Side Parameters
Output Power1MW
Rated Voltage380/400V 3W+N+PE
Rated Trequency50HZ
Response Time20ms
Conversion Efficiency98%
System Parameters
Operating Temperature RangeCharge:0~55°C/Discharge:-10~60°C
Operating Humidity Range5-85%RH
Depth Of Discharge80-90%
Cycle Life25+2℃/0.2C/80% DOD>8000
Protection GradeIP55
System Cycle Efficiency>90%@AC
Cooling MethodAir cooling
Fire Protection SystemPerfluorohexanone
Dimension40FT
CertificationCell:UL1973/IEC62619/UL9540A/TUV/CE
1600A DC Battery Combiner Cabinets
Product Model1500V DC 1600A*1 PCS
Max. Working Voltage1500V
Max. Charge/Discharge Current1600A
PCS Power500kW-1000kW
Communication ModeTCP/485/CAN/232
Operating Temperature RangeCharging:0~55℃/Discharging:-10~600
Operating Humidity Range5-85%RH
Protection GradeIP20
Fire Protection SystemAerosol
Dimension800*600*2261mm
