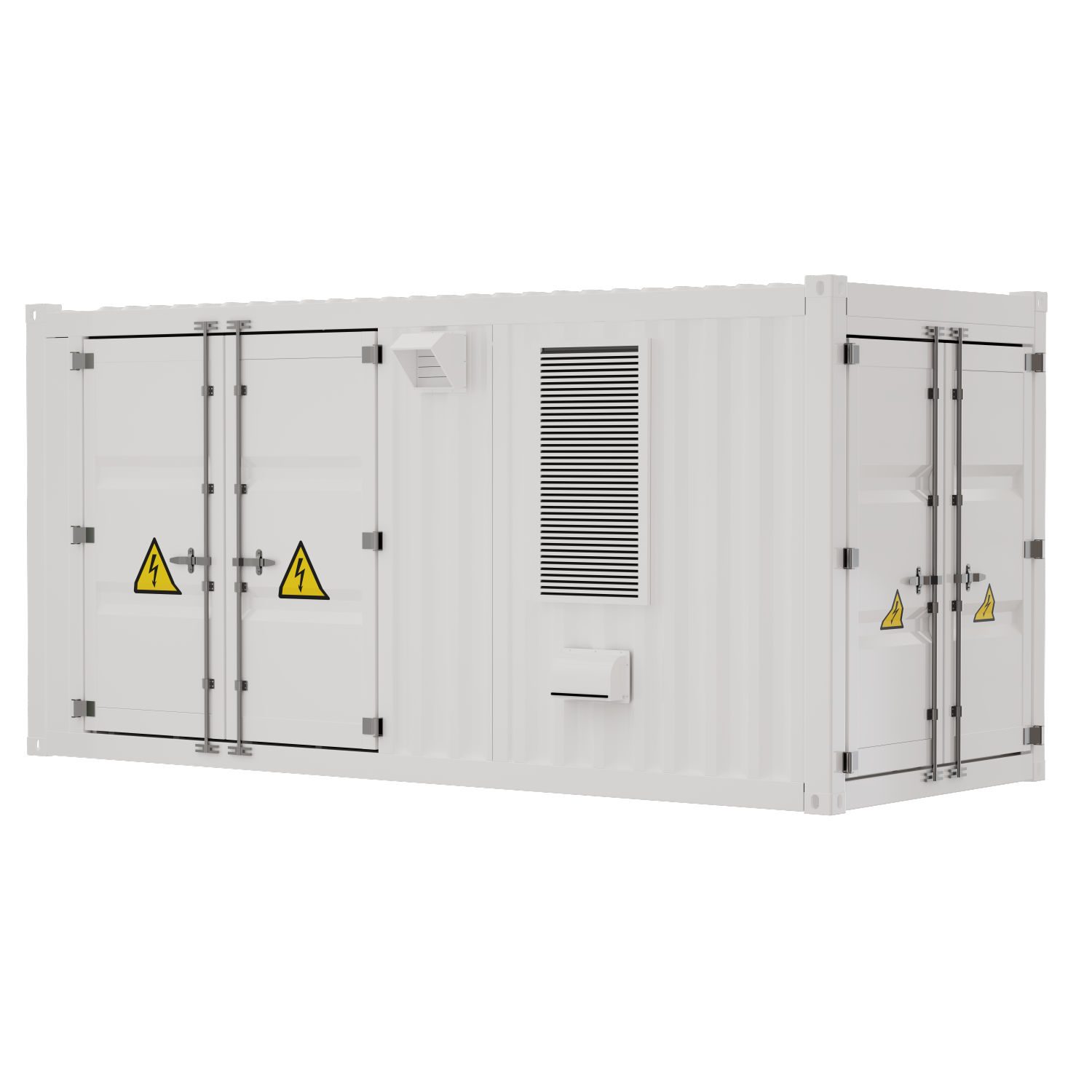

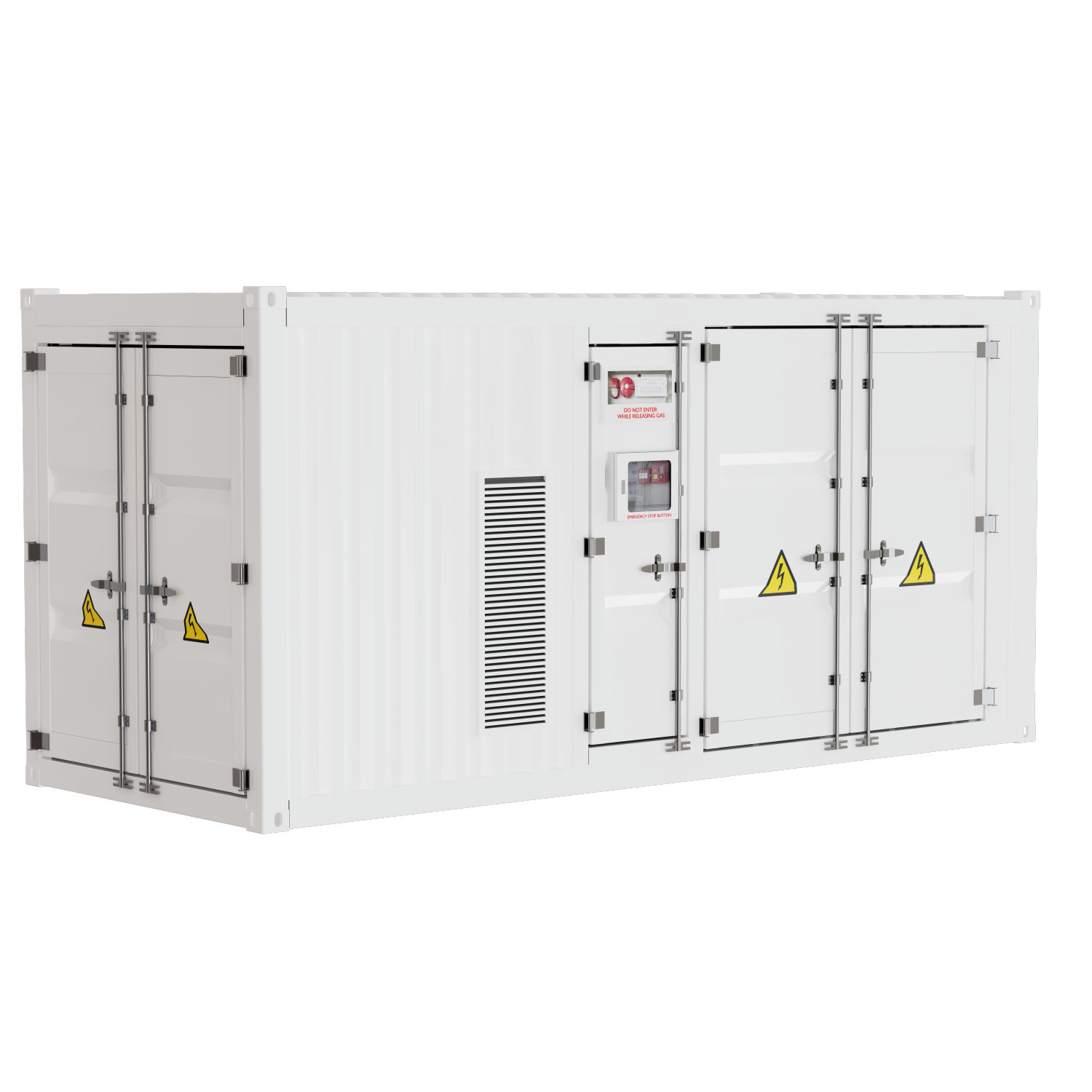

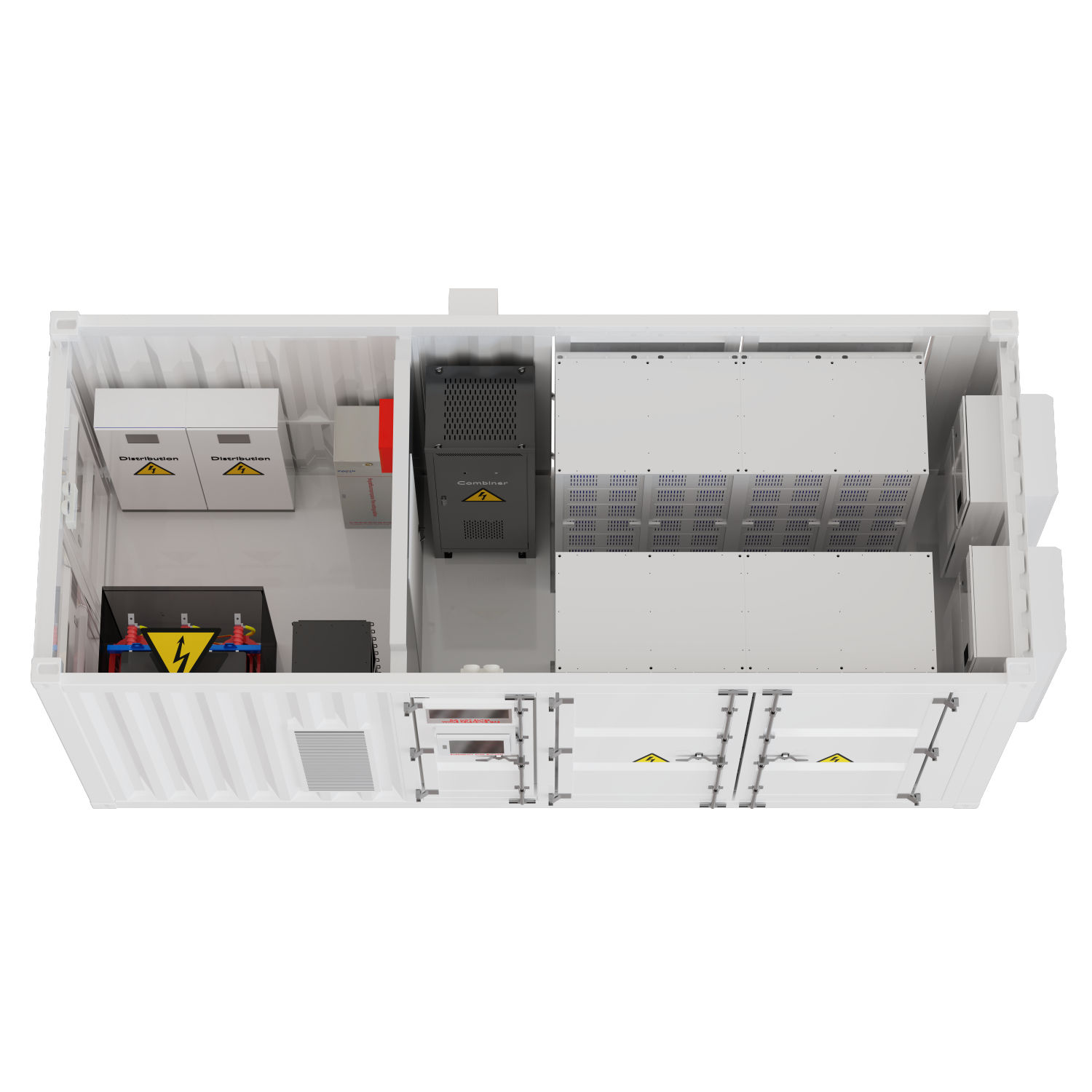

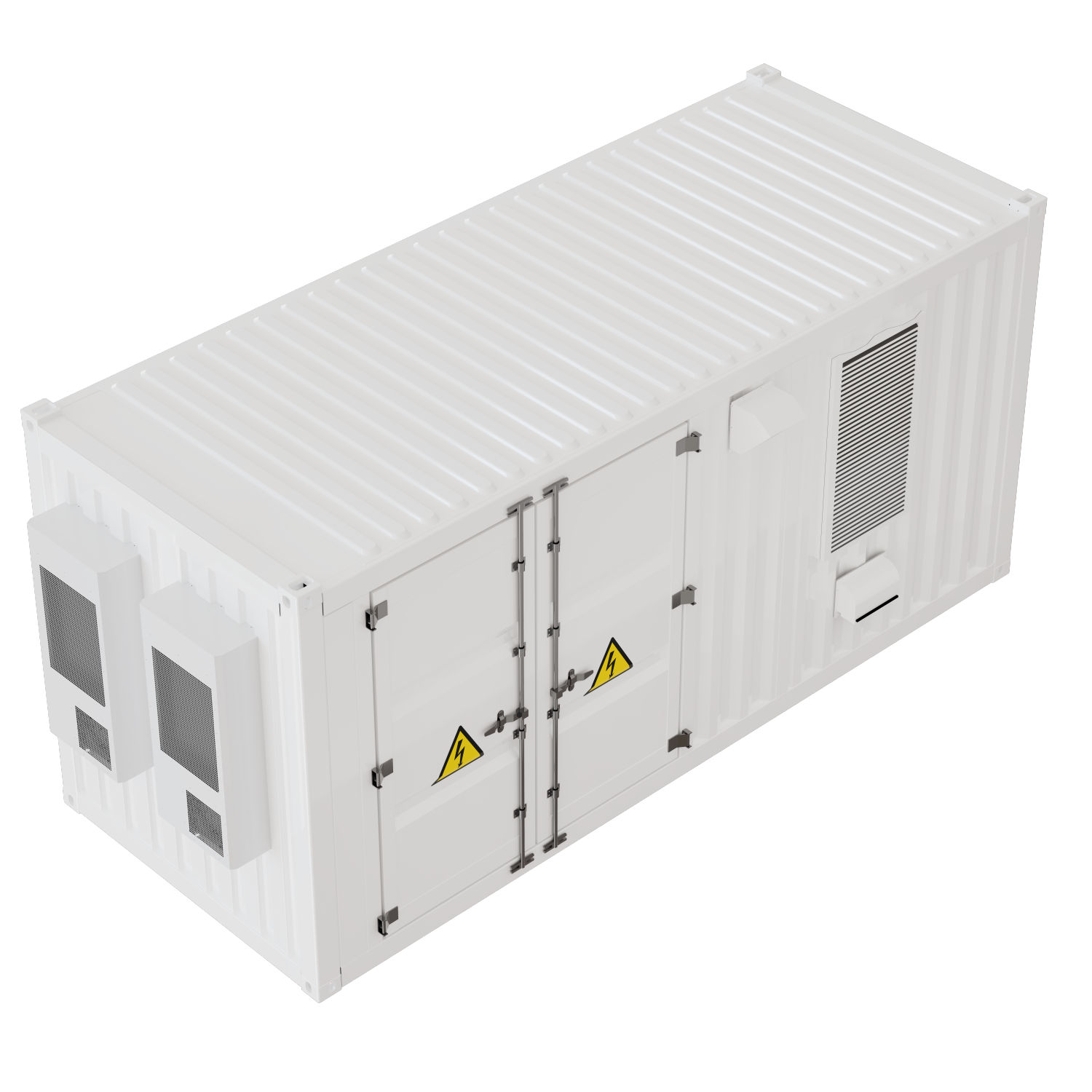

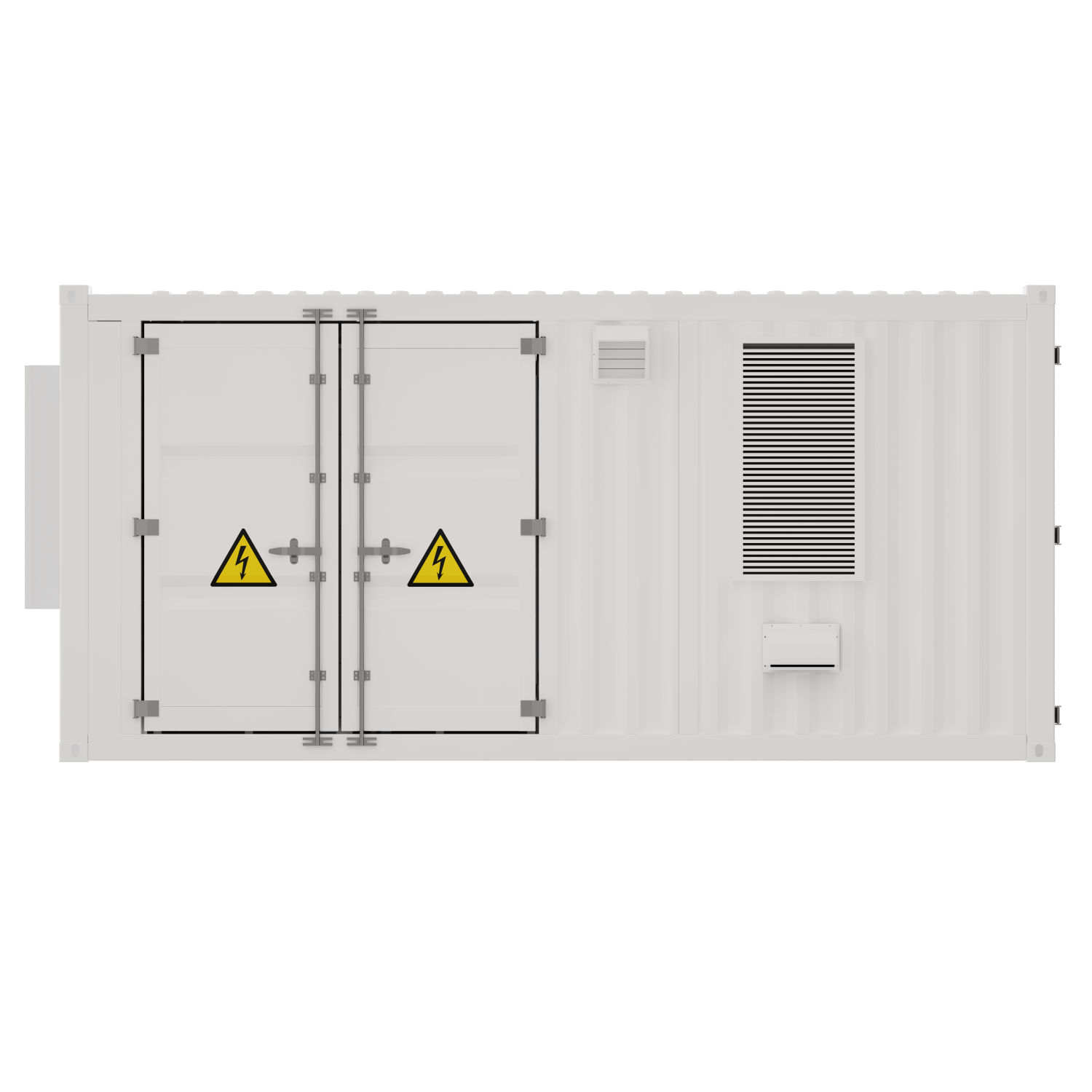

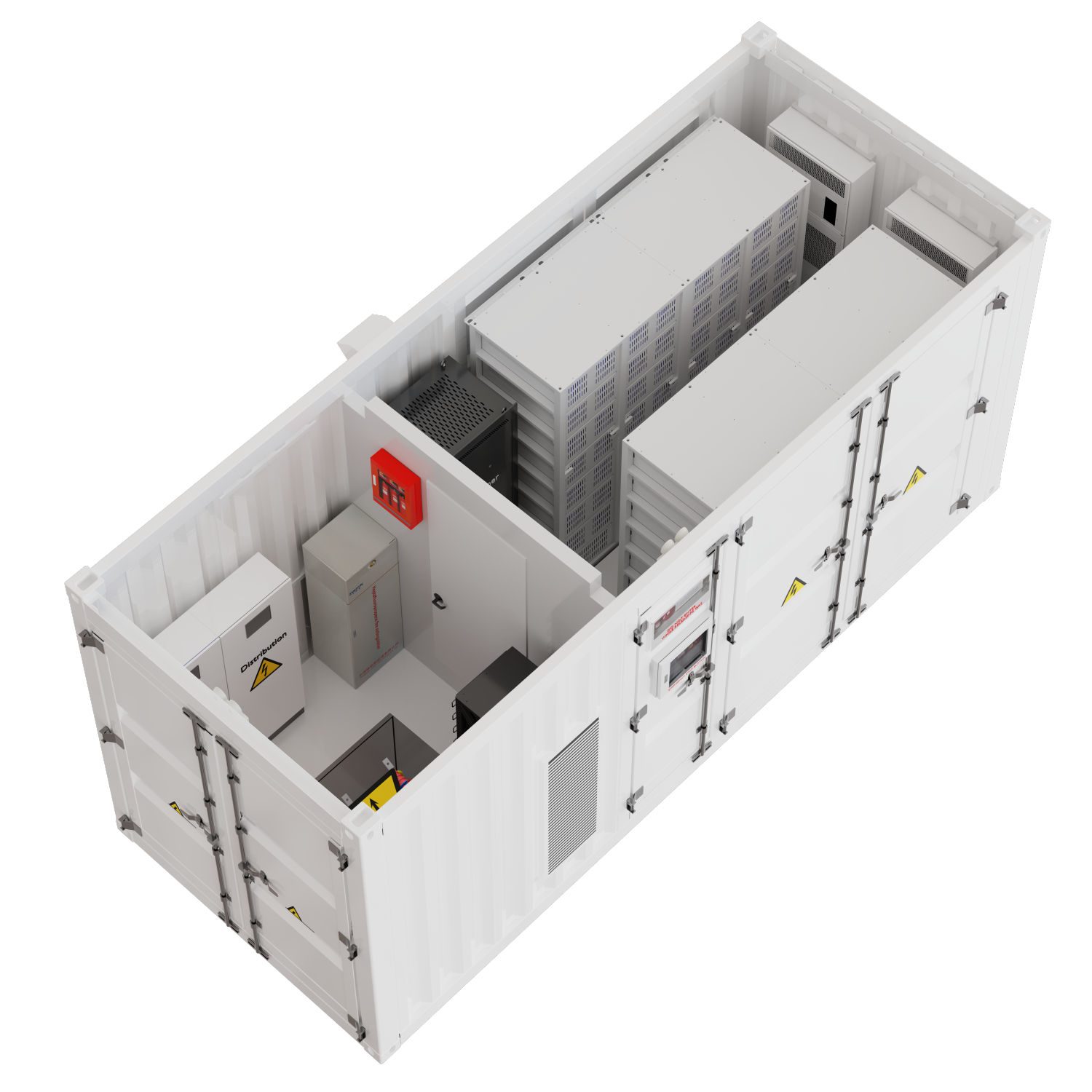

GENIXGREEN Titan-860kWh+500kW High Voltage 20 Feet Commercial & Industrial BESS Outdoor Energy Storage System

Real-time data monitoring
1.7*24 hours real-time and accurate display of operating data of mains electricity, photovoltaics, energy storage, charging piles, and microgrids.
2. Use multi-dimensional data analysis and statistics on energy consumption and income data, and display them visually.
3. Support the remote control of the power station status anytime and anywhere from the site and the cloud.
4. Real-time push of station operation reports

Energy consumption analysis
1. Manage the entire life cycle of equipment and analyze the rules of abnormal points.
2. Data correlation analysis to find the relationship between equipment, strategies and energy consumption.
3. Find energy consumption optimization points and improve energy conversion efficiency.

Intelligent prediction
1. Load prediction and regulation.
2. Demand side response analysis, prediction and management.
3. Photovoltaic power generation forecast analysis.
4. Battery charge and discharge model analysis and SOH prediction.

Efficient management
1. Timely early warning notification of equipment abnormalities and failures.
2. Online and offline 24-hour efficient operation and maintenance management.
3. Centralized control management and operation strategy of the power station.
4. Smart networking large screen, energy cockpit.

SKU: Titan-860kWh+500kW
Category:
Brands:
Tags: , , , , , , ,
Product ModelTitan-860kWh+500kWTitan-1.075MWh+500kW
Cell Parameters3.2V280Ah LFP
Pack Parameters1P16S
Battery Cluster1P16S*15
System Combination768V
Rated Energy720-850V
Rated Voltage4*1P240S5*1P240S
Operating Voltage Range860kWh1.075MWh
Rated Multiplier0.6P0.5P
Photovoltaic Side Parameters
Rated Voltage600V50kW/single
Rated Current100A600/660/720V
MPPT Max. Range420-850V10/11/12
MPPT Rated Power50kW250-600V
Number Of MPPT Channels5450-600V
AC Side Parameters
Output Power250kW500KW
Rated Voltage380/400V 3W+N+PE380/400V 3W+N+PE
Rated Trequency50HZ50HZ
Response Time20ms20ms
Conversion Efficiency98%98%
System Parameters
Operating Temperature RangeCharge:0~55°C/Discharge:-10~60°C
Operating Humidity Range5-85%RH
Depth Of Discharge80-90%
Cycle Life25+2C/0.2C/80% DOD>8000
Protection GradeIP55
System Cycle Efficiency≥90%@AC
Cooling MethodAir cooling
Fire Protection SystemPerfluorohexanone
Dimension20FT
CertificationCell:UL1973/EC62619/UL9540A/TUV/CE
800A DC Battery Combiner Cabinets
Product Model1500V DC 800A*1 PCS
Max. Working Voltage1500V
Max. Charge/Discharge Current800A
PCS Power250kW-500kW
Communication ModeTCP/485/CAN/232
Operating Temperature RangeCharge:0~55°C/Discharge:-10~60°C
Operating Humidity Range5-85%RH
Protection GradeIP20
Fire Protection SystemAerosol
Dimension600*600*1680mm
