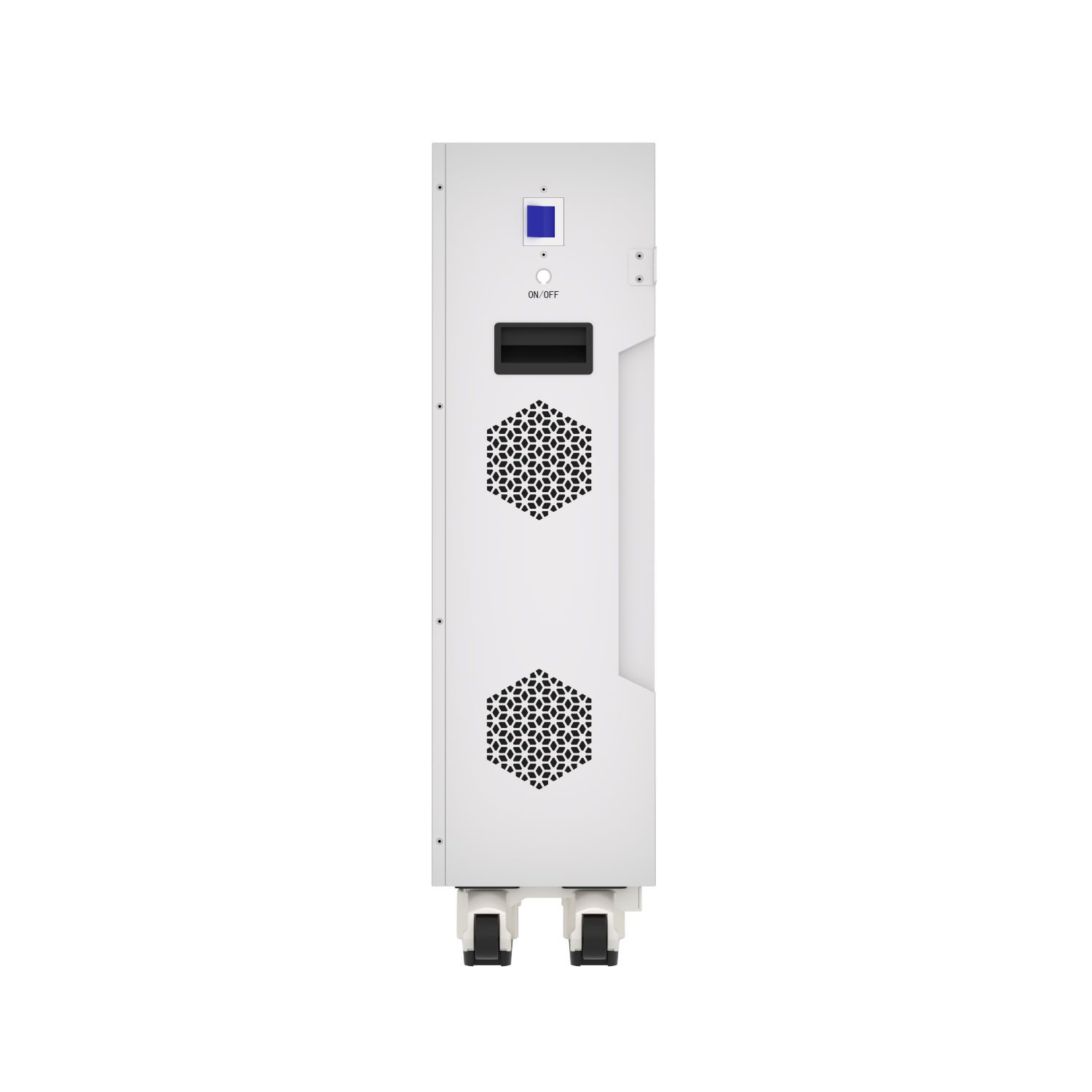

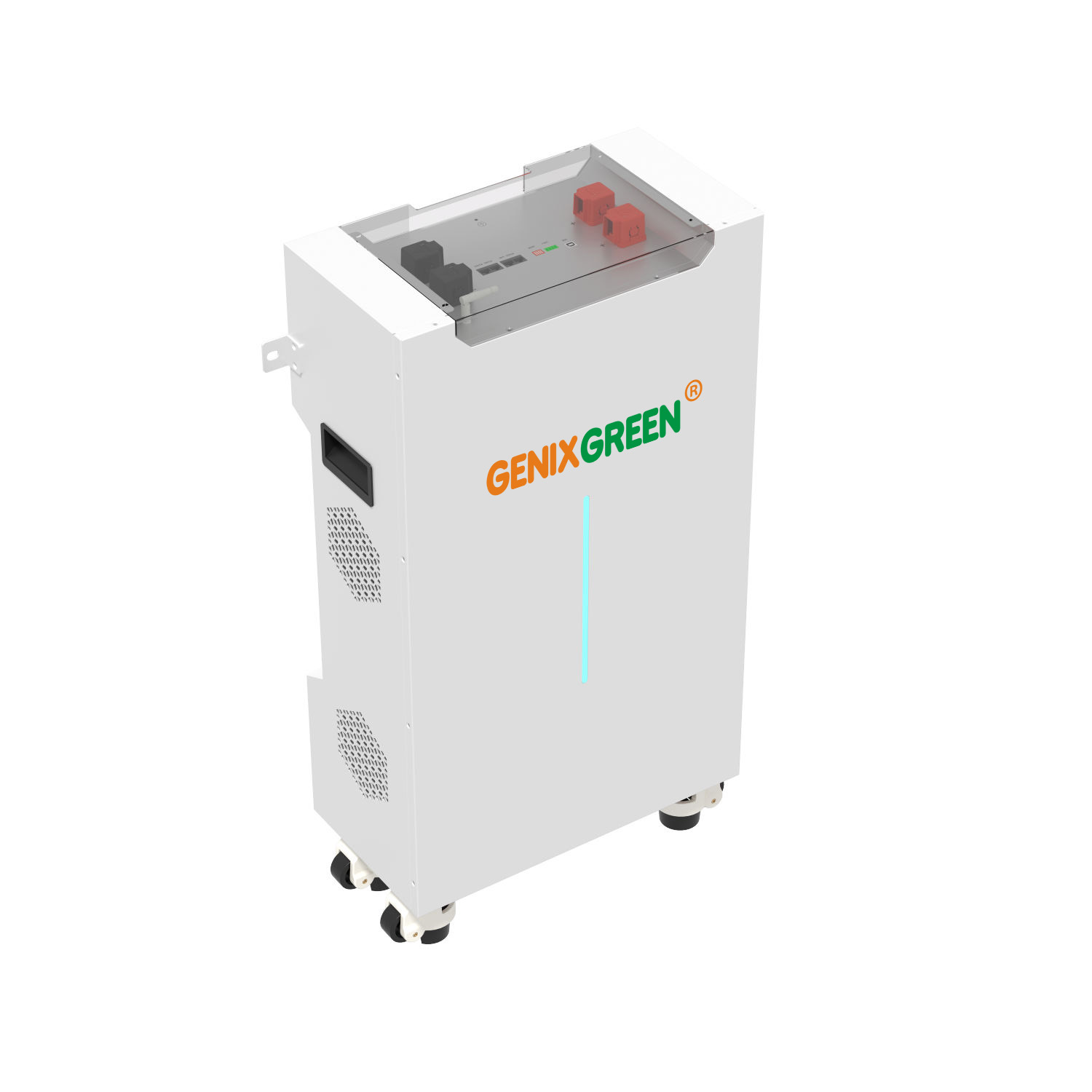

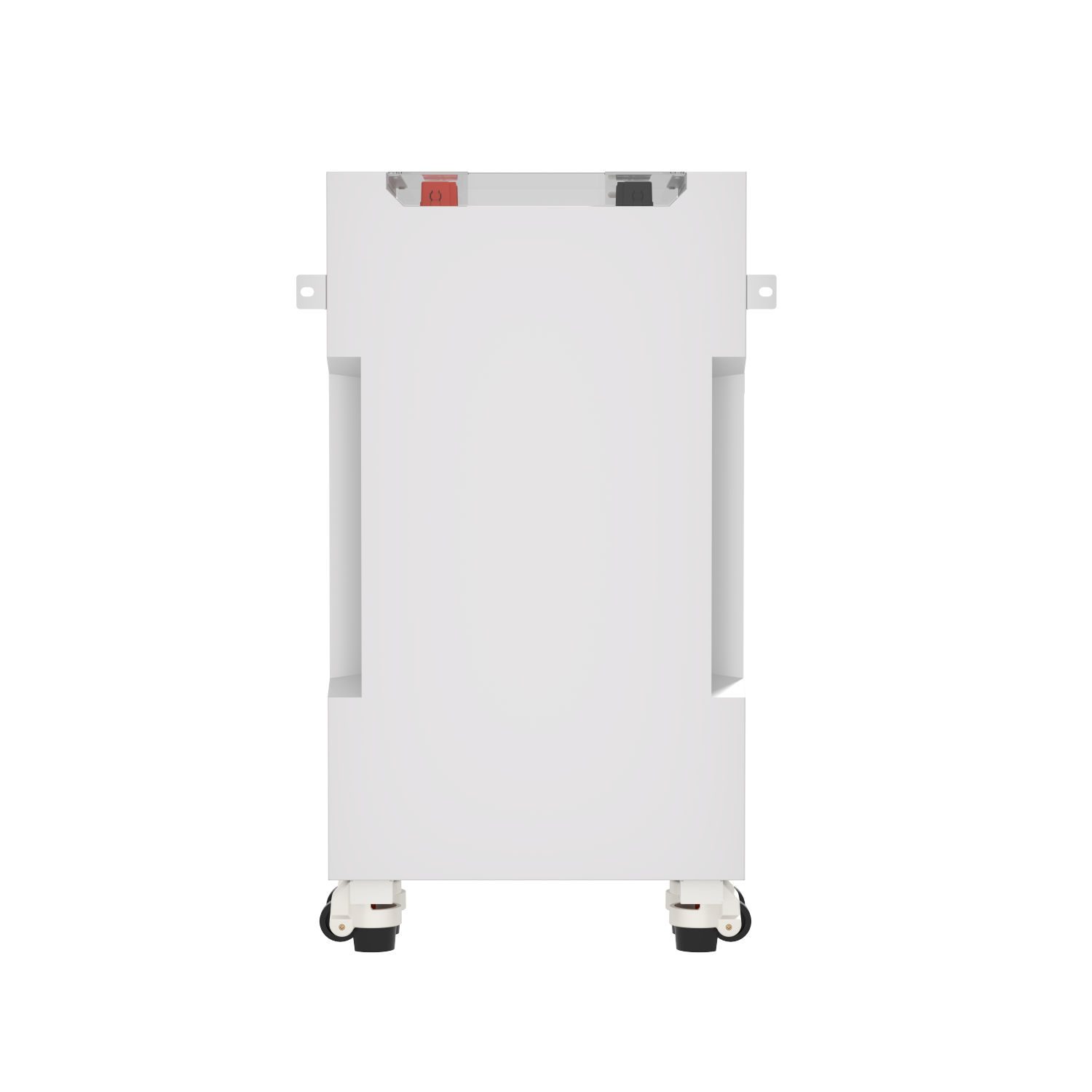

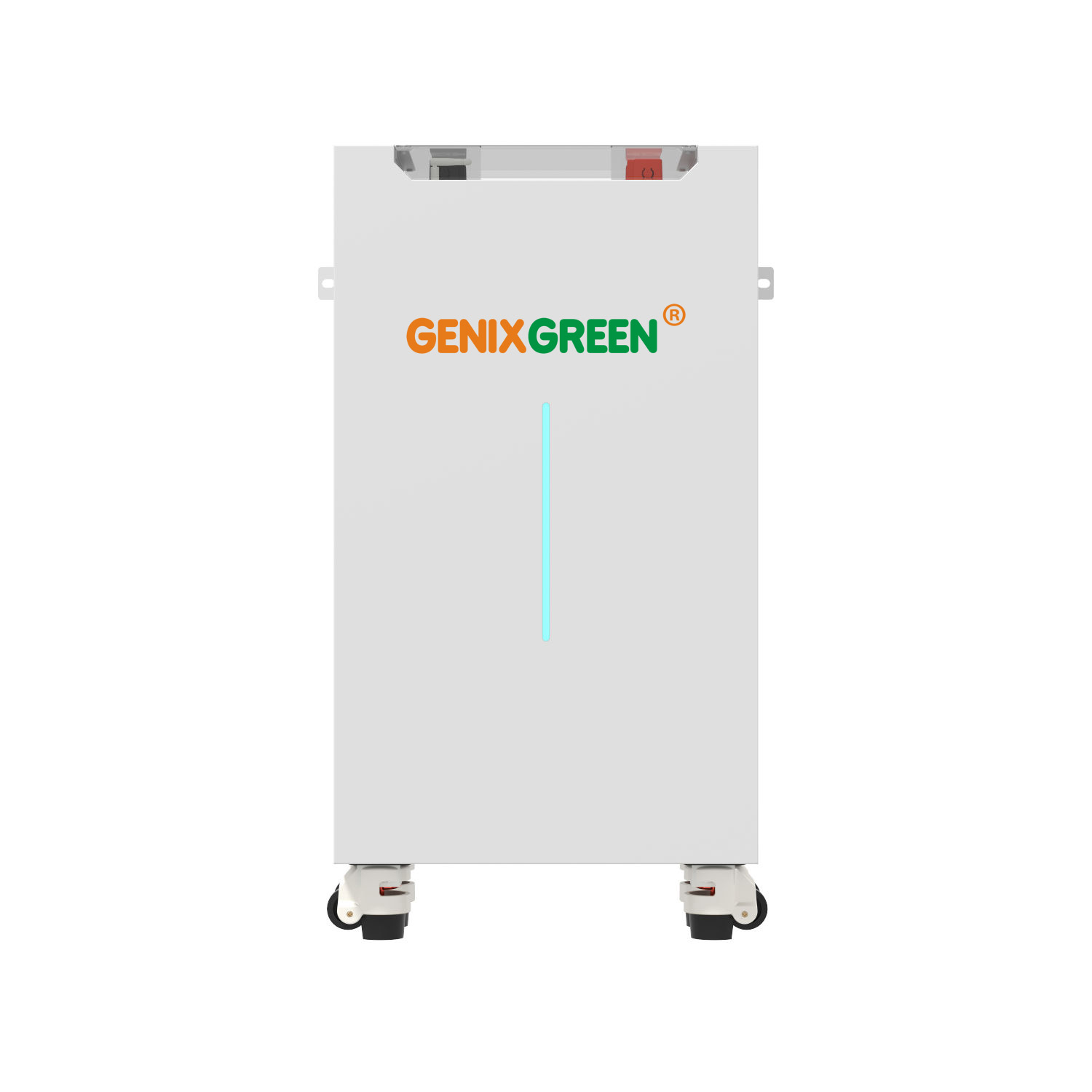

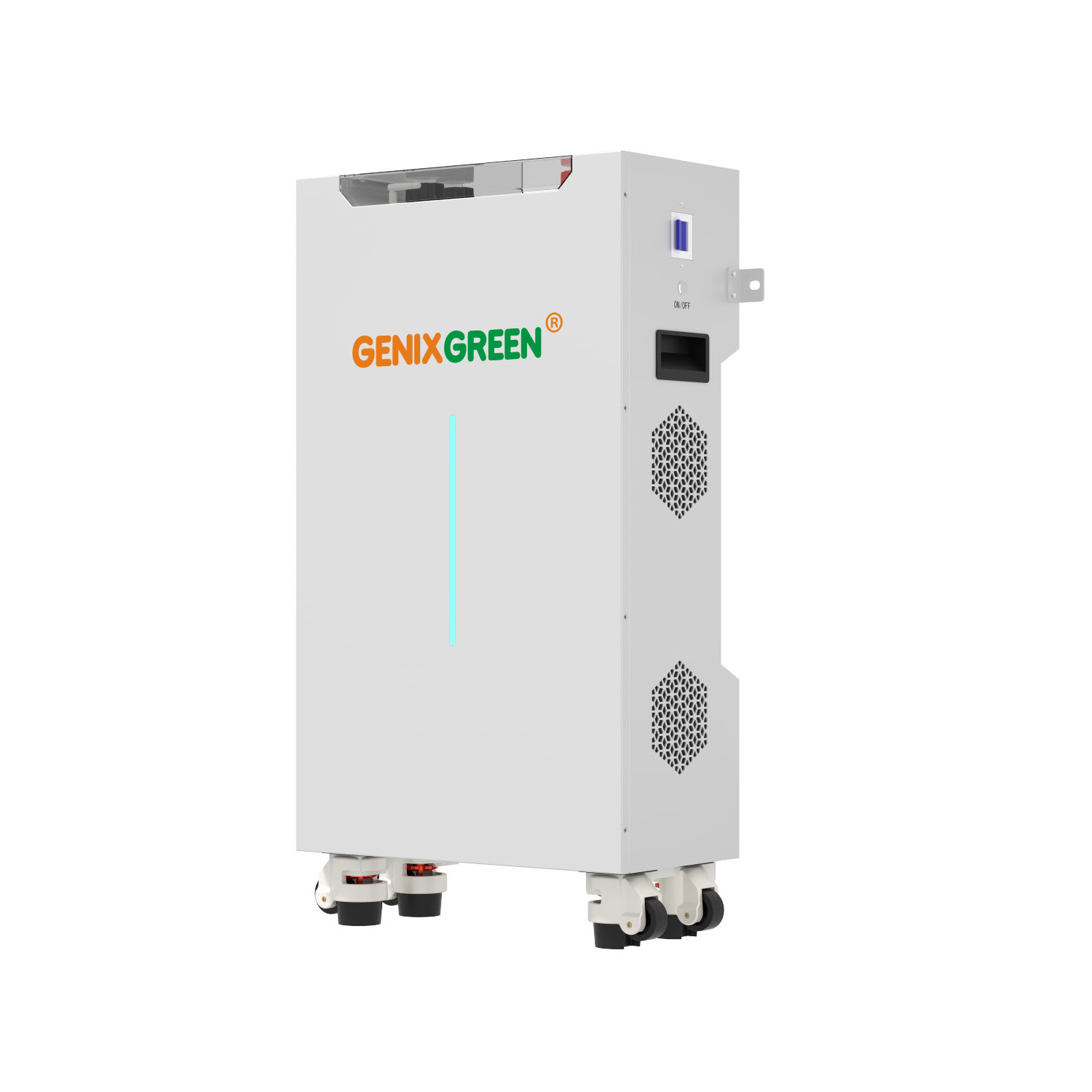

14.34kWh ES-BOX34MAX 51.2V 280Ah Wall mounted or Floor Standing WiFi remote monitoring energy storage Lithium battery

Safe & stable:
1. Built in BMS with multiple protections;
2. Real time monitoring of data through communication function.
Flexible & convenient:
1. Simple design and fast debugging speed;
2. Support multiple installation schemes, easy to install.
3.Compatible with multi-brand inverters.
Smart operation & management:
1.Remote O&M to improve operational efficiency;
2.Remote diagnosis OTA upgrade.
High performance:
1. High consistency. Low internal resistance ensures good consistency in battery discharge;
2. High capacity. Rate charge and discharge.

SKU: ES-BOX34MAX
Category:
Brands:
Get a Product Quote
Tags: , , , , , , ,
Product ModelBOX34BOX34PLUSBOX34MAX
Nominal Energy5.12kwh10.24kWh14.34kWh
Nominal Voltage51.2V51.2V51.2V
Nominal Capacity100Ah200Ah280Ah
Cell TypeLFPLFPLFP
Standard Charge Voltage56.8V56.8V56.8V
Max. Discharge Current100A150A150A
Discharge Cut-Off Voltage44.8V44.8V44.8V
Parallel FunctionSupport 16 Units In Parallels
Communication InterfaceRS485、USB、CAN
Cycle Life *≥6000 Cycles (25°C+2°℃,0.2C/0.2C,80%DOD)
Charge Temperature Range0~55℃
Discharge Temperature Range-20~55℃
CertificationPack:CE/MSDS/UN38.3Cell: CE/IEC 62619 by TUV/UL1973 by Intertek/ROHS
Dimension662*542*235mm712*542*315mm490*250*922mm
(Excluding foot supportand wall mounted components)
Net Weight51Kg100Kg135Kg
Installation MethodWall Mounted/Floor Standing
Design Lifetime10 Years
OptionalWiFi remote monitoring
