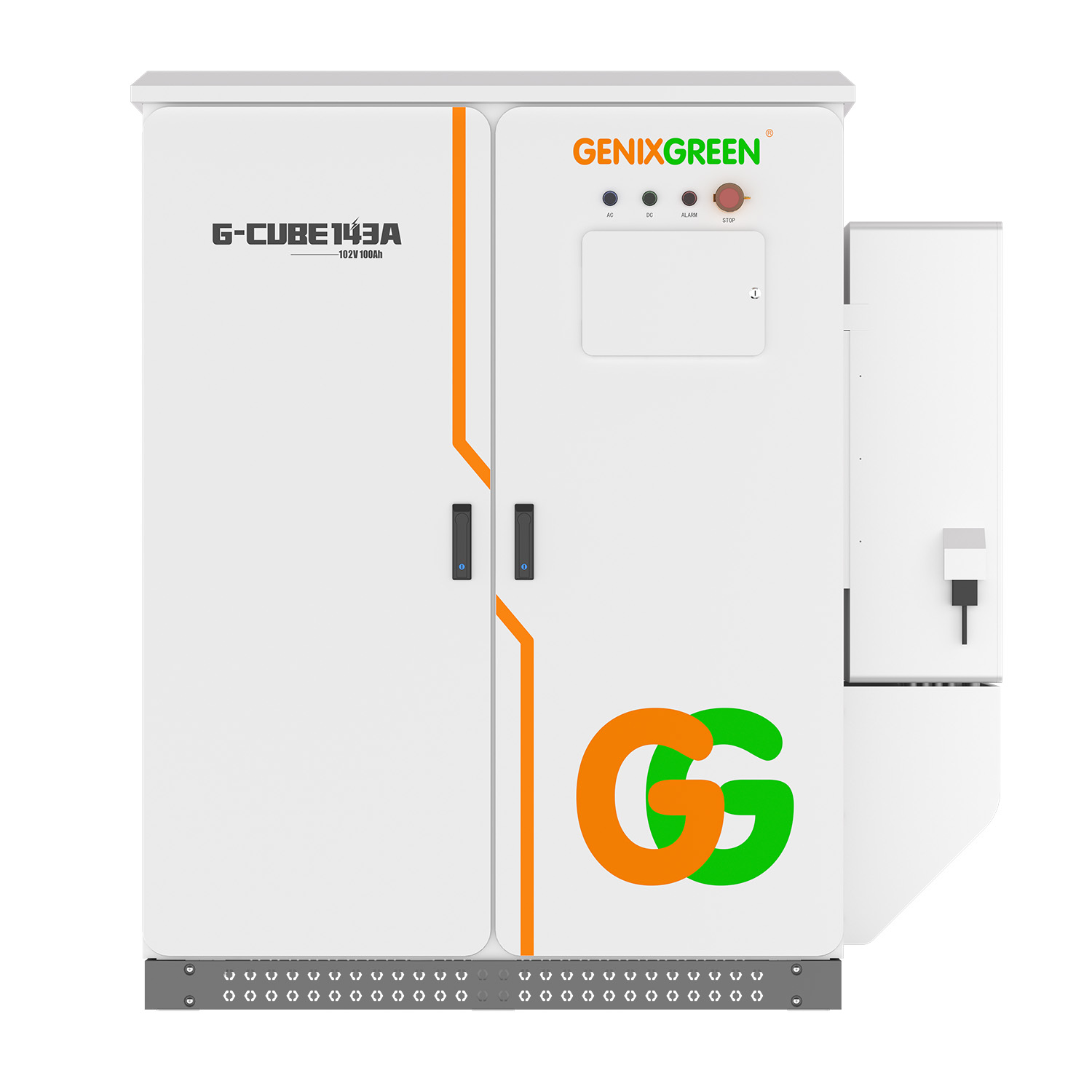

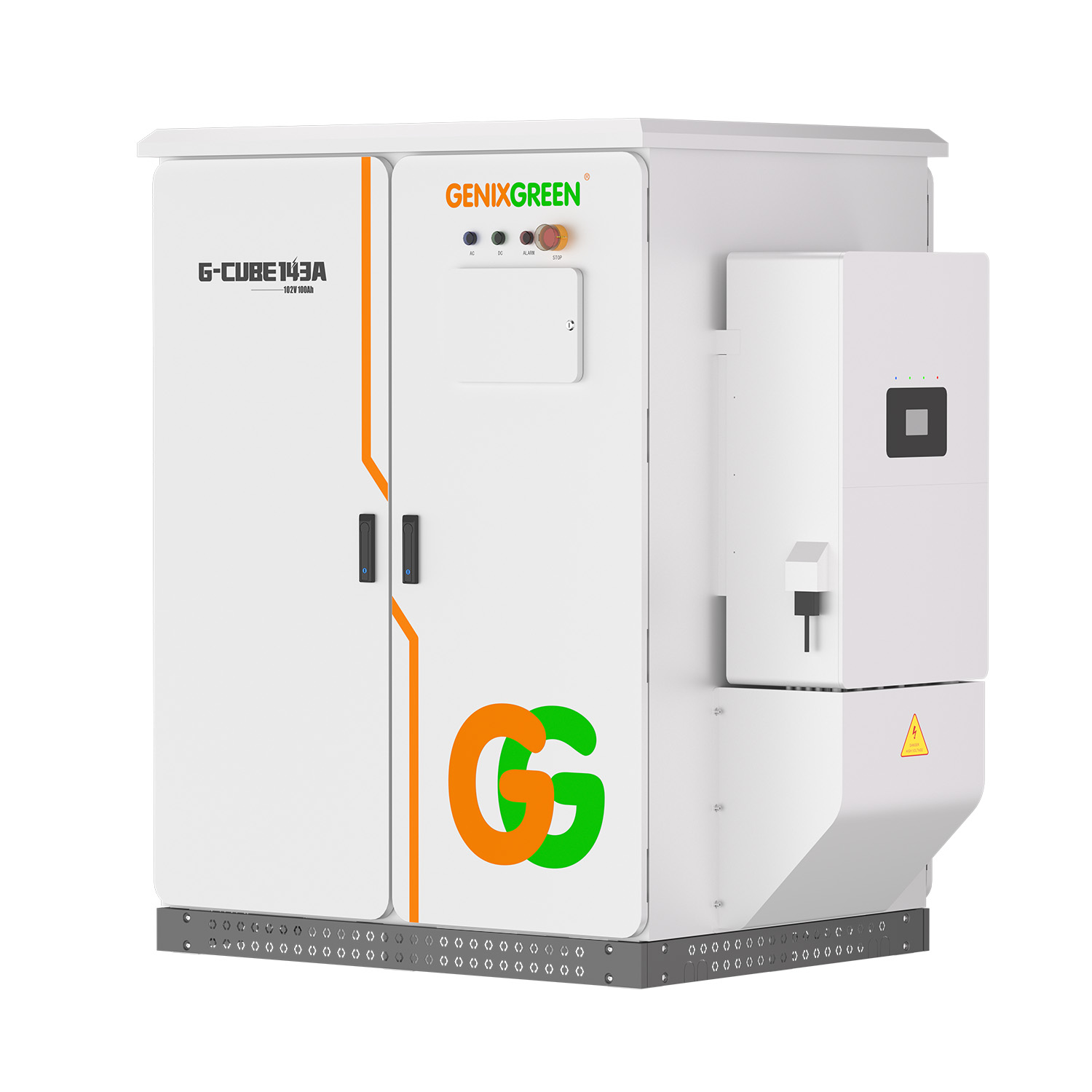

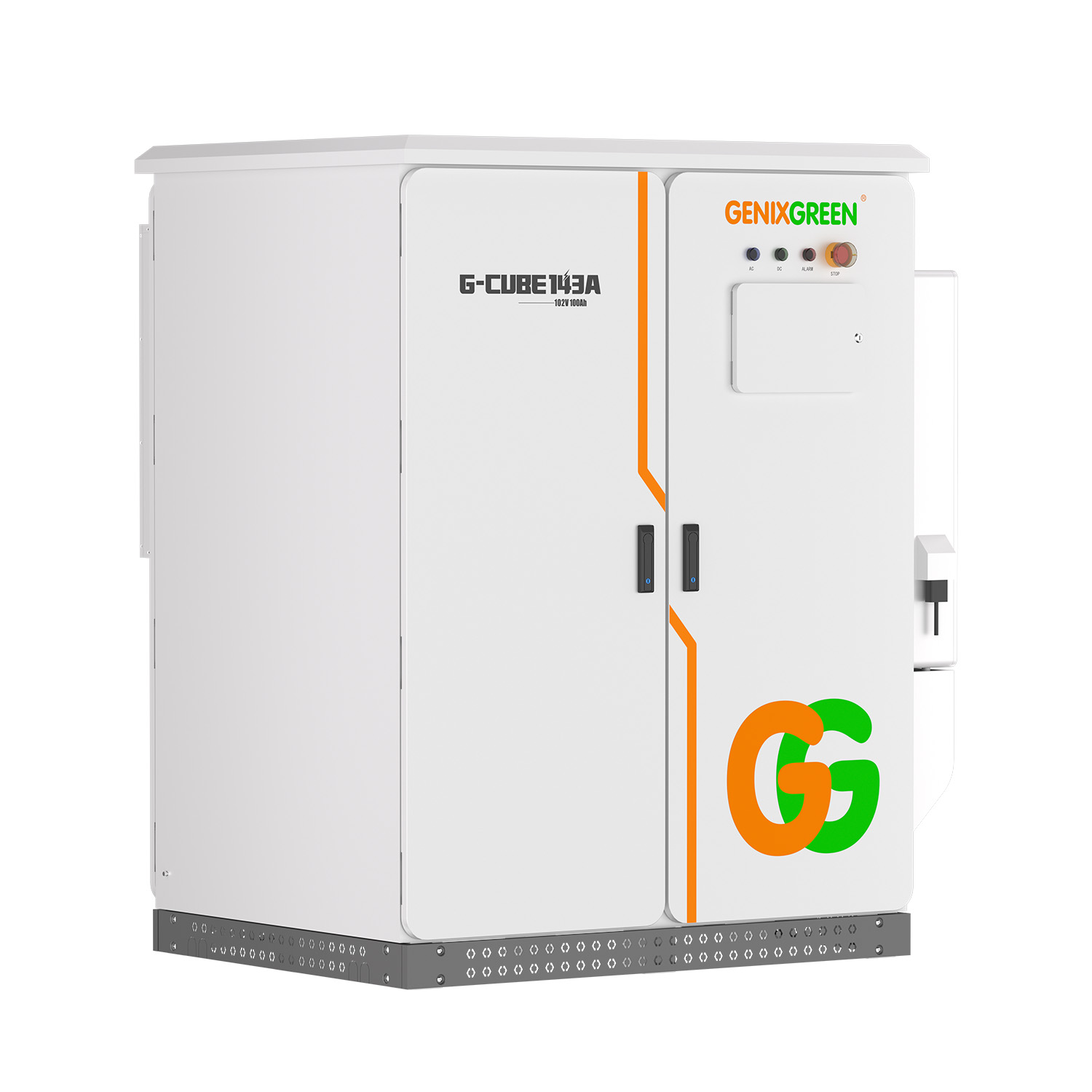

GENIXGREEN G-CUBE 102-143kWh 716.8V High Voltage LiFePO4 Battery Outdoor Energy Storage System

1. Plug and play Play and plug in
2. The system has high energy density, saving transportation costs and installation space
3. Reduce the operational risks of the installer in the installation process and improve product stability
4. The whole system is intelligently designed, and the full-time BMS balance keeps the SOC more accurate, improves the consistency of the battery cells and ensures a working life of more than 10 years for the system
5. Integrate air conditioning system and fire protection system. Improve product stability and safety
6. Support multi-machine parallel system (AC convergence), such as when connected to the power grid, the parallel connection is not limited by quantity. Off-grid parallel operation <4 sets (need to distinguish the customer’s off-grid load type and load power)

SKU: G-CUBE 102-143kWh

Category: High Voltage LiFePO4 Battery, Industrial Commercial Energy Storage

Brands: GENIXGREEN

Get a Product Quote

Tags: 102kWh, 143kWh, 716.8V, Floor standing, G-CUBE Series, High Voltage LiFePO4 Battery, HV, IP55

Description

Model		G-CUBE 102-100	G-CUBE 122-100	G-CUBE 143-100
Battery Type		LiFePO4
Rated Capacity(Ah)		200 (After paralleling)
No. of System Module SeriesConnections(Optional)		5	6	7
System Rated Voltage (V)		512	614.4	716.8
System Operating Voltage(V)		448~576	537.6~691.2	627.2~806.4
System Nominal Energy(kWh)		102.44(After paralleling)	122.88(After paralleling)	143.36(After paralleling)
System Discharge Energy (kWh)		98.34(After paralleling)	117.96(After paralleling)	137.62(After paralleling)
Charge /Discharge Current(A)	Rated Current	50*2	80	96
	Max. Current	100*2	75.93	91.12
	Overload Current	115(10sec，25°C)*2
Output Terminal Voltage (AC side)		400V@AC
PCS Matching Power (KW)		50/100
Status Indicator Light		Blue: energy storage system start status, green: energy storage system operation status, red: energy storage system fault status
Communication Protocol		CAN2.0
Operating Temperature Range(°C)		-10~50
Operating Humidity Range		≤95%(No Condensation)
Operating Alitude		≤2000m
System Cooling Method		Air Cooling
Waterproof Rating		IP55
Fire Fighting System		Hot aerosol
Net Weight(kg)		≈1410	≈1585	≈1765
Maximum Size(mm)		166510901782
Storage Temperature(°C)		0~35
Recommended Depth of Discharge(DOD)		90%
Cycle Life		25+2℃/0.2C/80%≥6000
System Composition		BMS management system, fire protection system, air-cooled unit, cabinet, PCS system
Certification		Cel:UL973/EC62619/CE/ROHS/MSDS/UN38.3
PS: 1. System discharge power, test conditions: 90% DOD, 0.20 charging and discharging at 25 ° c. (The available energy of thesystem may vary depending on the system configuration parameters)2.The current maanitude is affected by temperature and SOC.
