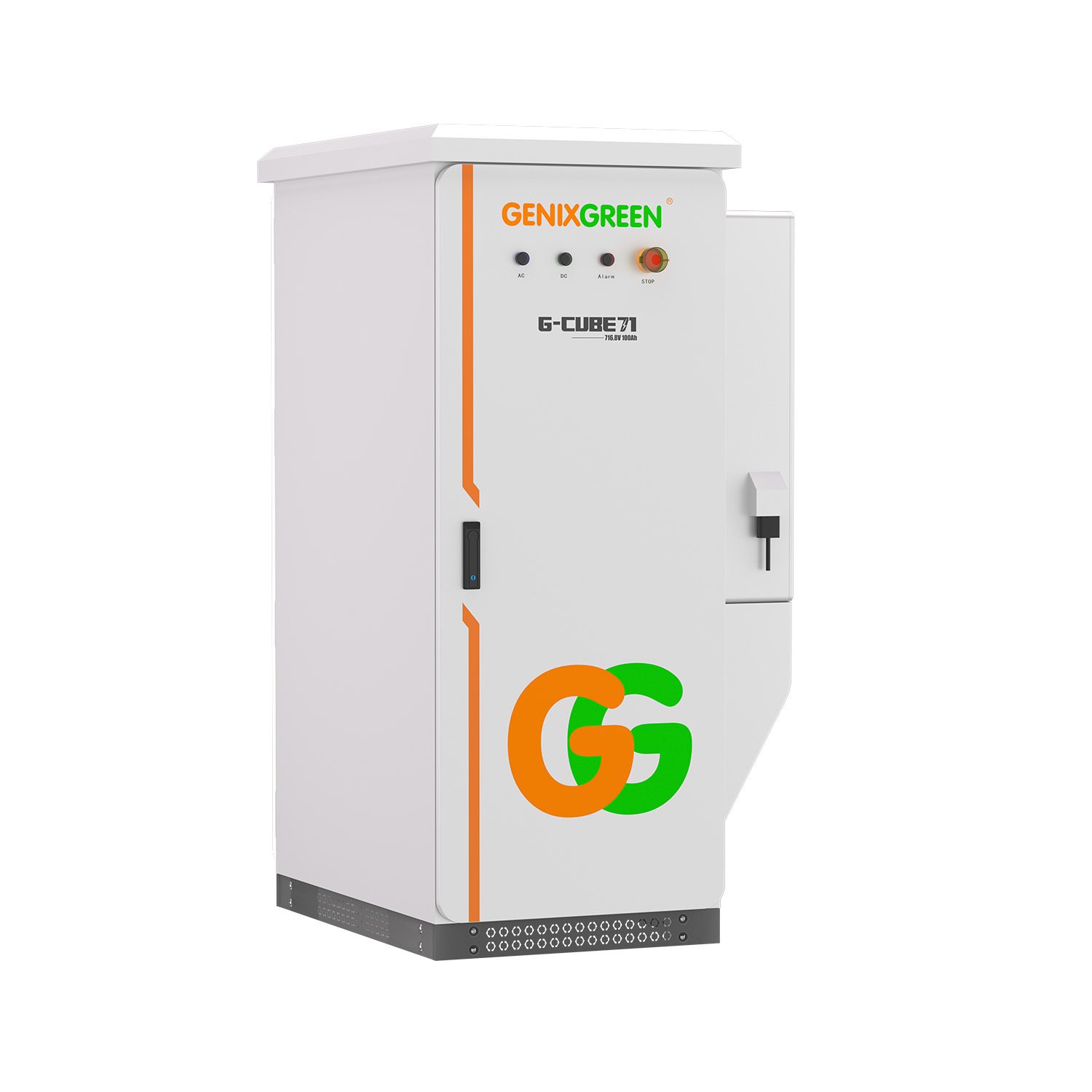

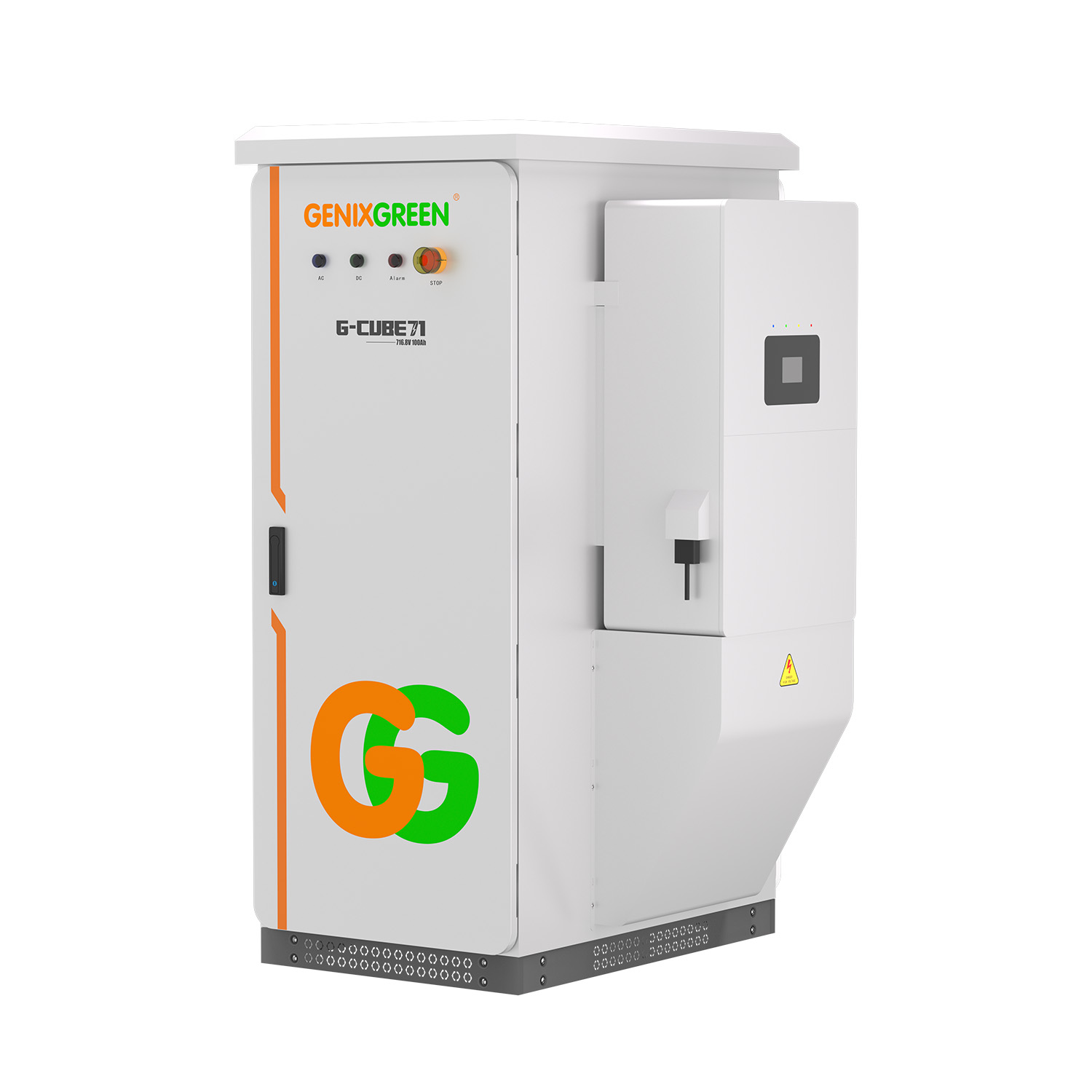

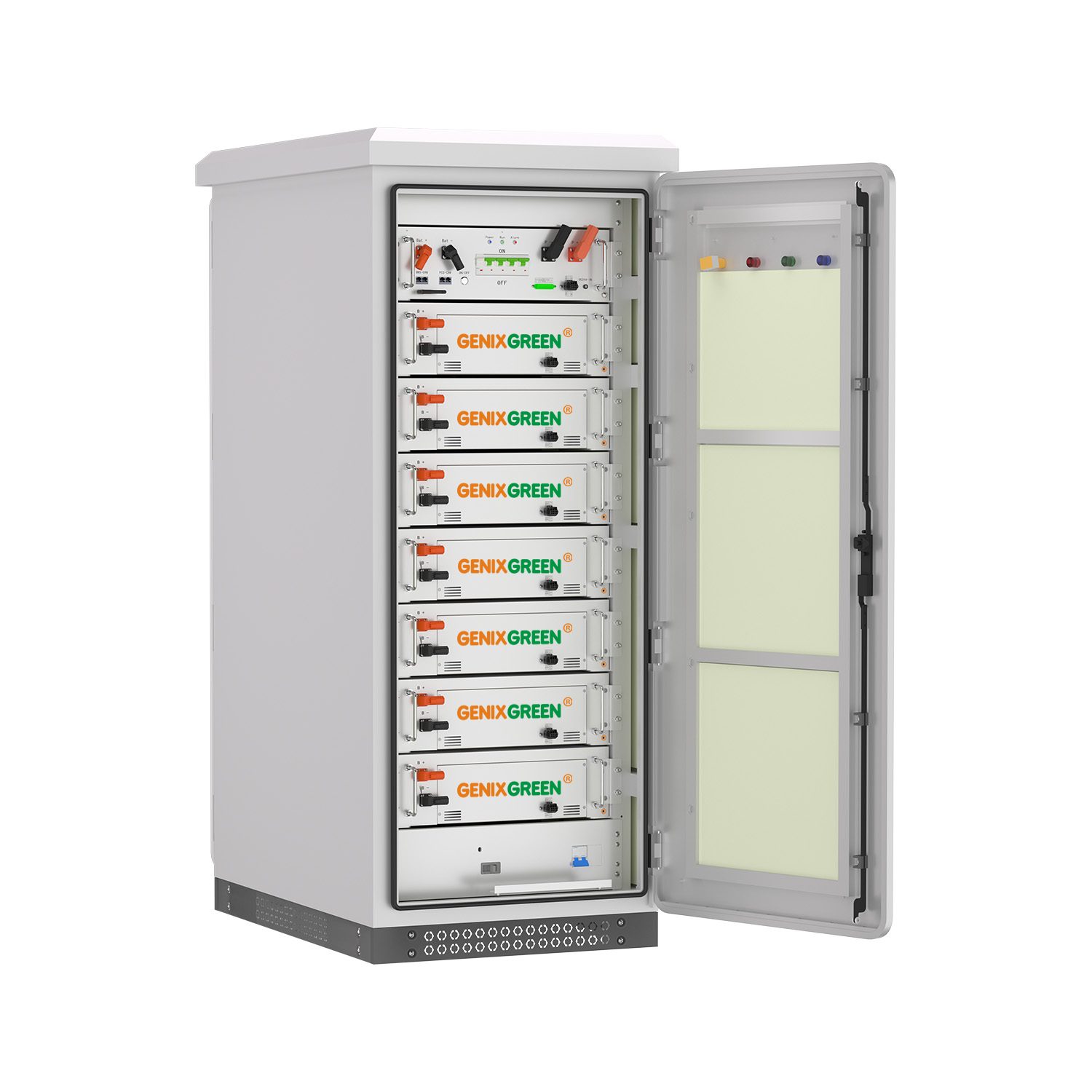

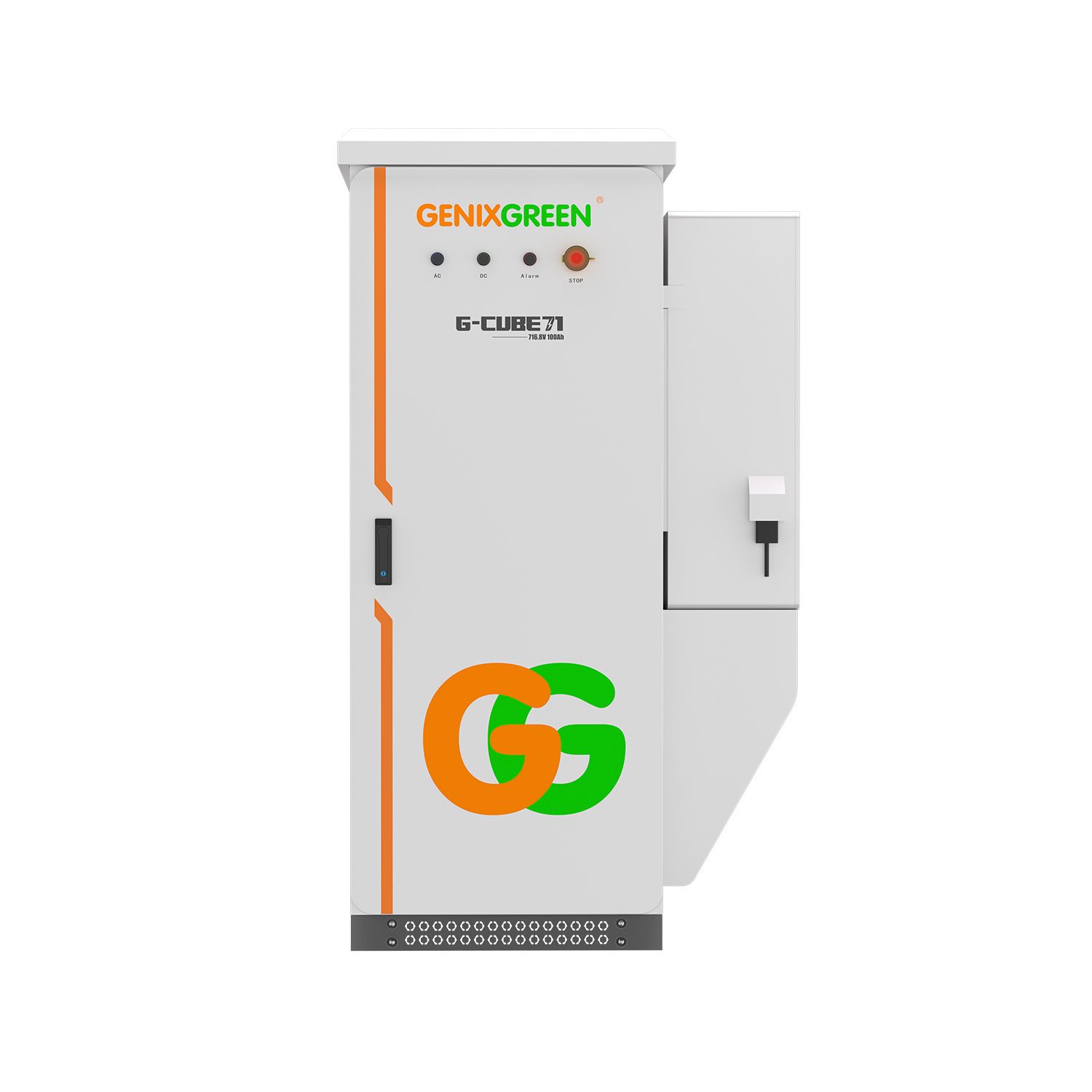

GENIXGREEN G-CUBE 61-71kWh 716.8V High Voltage LiFePO4 Battery Outdoor Energy Storage System

1. Plug and play Play and plug in
2. The system has high energy density, saving transportation costs and installation space
3. Reduce the operational risks of the installer in the installation process and improve product stability
4. The whole system is intelligently designed, and the full-time BMS balance keeps the SOC more accurate, improves the consistency of the battery cells and ensures a working life of more than 10 years for the system
5. Integrate air conditioning system and fire protection system. Improve product stability and safety
6. Support multi-machine parallel system (AC convergence), such as when connected to the power grid, the parallel connection is not limited by quantity. Off-grid parallel operation <4 sets (need to distinguish the customer’s off-grid load type and load power)

SKU: G-CUBE 61-71kWh
Category: ,
Brands:
Get a Product Quote
Tags: , , , , , ,
ModelG-CUBE 61-50G-CUBE 71-50
Battery TypeLiFePO4
Rated Capacity(Ah)100
No. of System Module Series Connections(Optional)67
System Rated Voltage (V)614.4716.8
System Operating Voltage(V)537.6~691.2627.2~806.4
System Nominal Energy(kWh)61.4471.68
System Discharge Energy (kWh)58.9868.81
Charge /DischargeCurrent(A)Rated Current50
Max. Current100
Overload Current115(10sec，25℃)
Output TerminalVoltage (AC side)400V@AC
PCS Matching Power (KW)50
Status Indicator LightBlue: energy storage system start status, green: energy storage system operation status, red: energy storage
system fault status
Communication ProtocolCAN2.0
Operating Temperature Range(℃)-10~50
Operating Humidity Range≤95%(No Condensation)
Operating Alitude≤2000m
System Cooling MethodAir Cooling
Waterproof RatingIP55
Fire Fighting SystemAerosol
Net Weight(kg)≈780kg≈870kg
Maximum Size(mm)1020*1080*1786
Storage Temperature(℃)0~35
Recommended Depth of Discharge(DOD)90%
Cycle Life25+2C/0.2C/80%≥6000
System CompositionBMS management system, fire protection system, air-cooled unit, cabinet, PCS system
CertificationCel:UL1973/EC62619/CE/ROHS/MSDS/UN38.3
